Honda PCX125 User Manual

l"'D/3 'D,'9,34
+
II

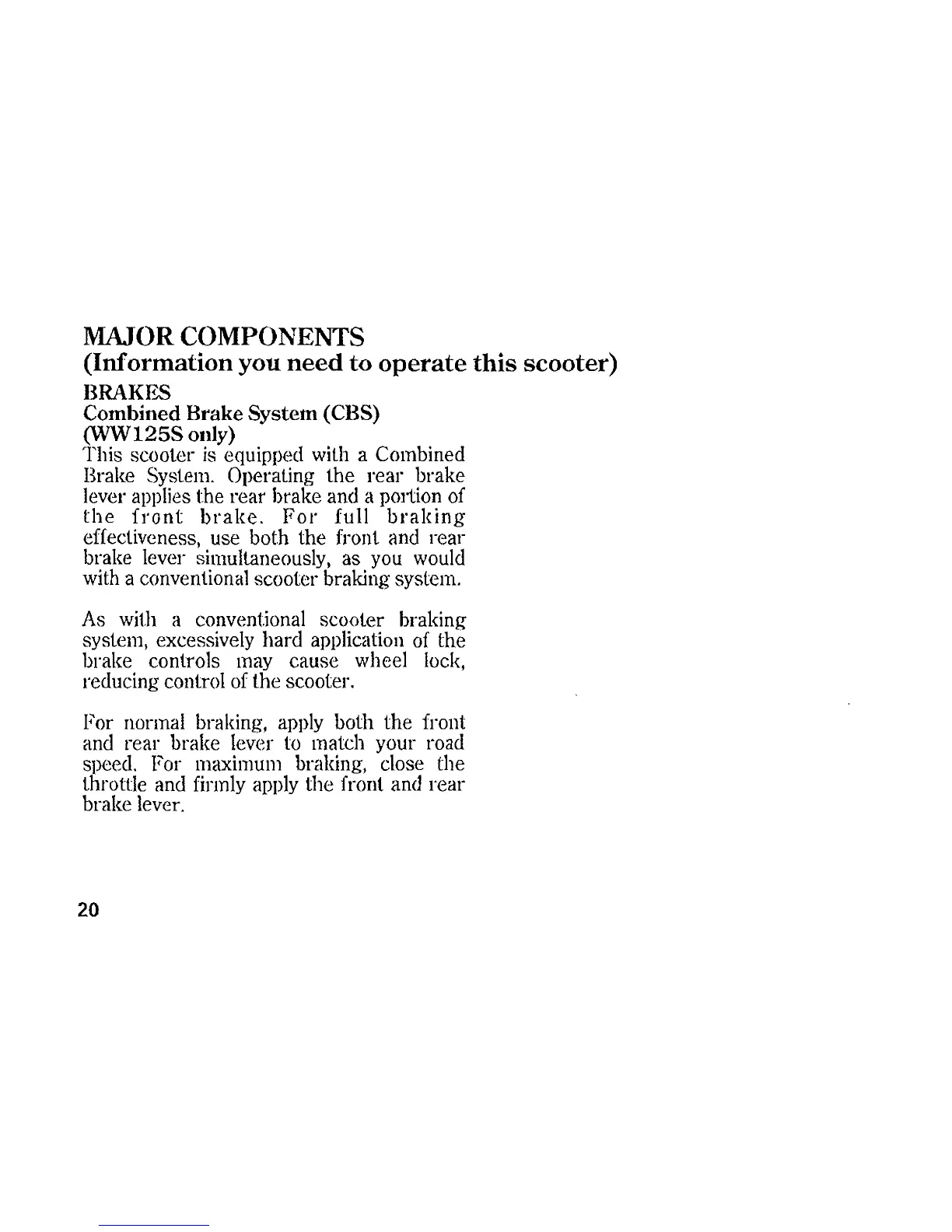

MAJOR COMPONENTS
(Information you need to operate this scooter)
BRAKES
Combined Brake System (CBS)
(WW125S only)
This scooter
is equipped with a Combined
Brake System. Operating the rear brake
lever applies the rear brake and a pOltion of
the front brake. For full braking
effectiveness, use both the front and rear
brake lever simultaneously, as you would
with a conventional scooter braking system.
As with a conventional scooter braking
system, excessively hard application
of the
brake controls may cause wheel lock,
reducing control of the scooter.
For normal braking, apply both
the front
and rear brake lever to match your road
speed, For maximum braking, close the
throttle and firmly apply the front and rear
brake lever.
20
+
I L_
+
Iii
Provided by http://www.hondapcx.org

Honda PCX125 Specifications

General

Fuel System	PGM-FI electronic fuel injection
Seat Height	764 mm
Starter	Electric
Wheelbase	1, 315 mm
Transmission	Automatic
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Engine Type	Single-cylinder, liquid-cooled, 4-stroke
