FUEL SYSTEM
7-8

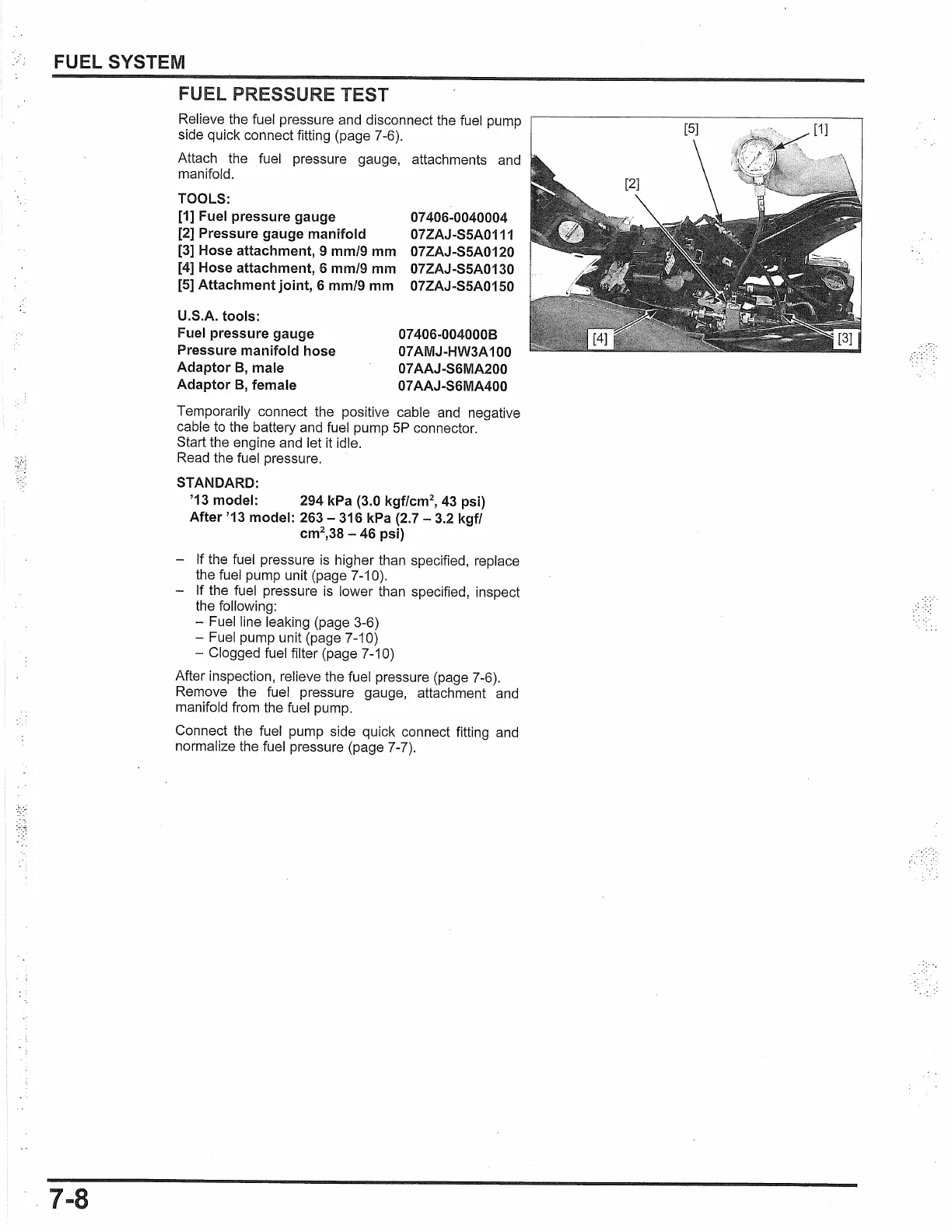

FUEL PRESSURE TEST
Relieve the fuel pressure and disconnect the fuel pump
side quick connect fitting (page 7-6).
Attach the fuel pressure gauge, attachments
and
manifold.
TOOLS:
[1] Fuel pressure gauge
[2] Pressure gauge manifold
[3] Hose attachment, 9 mm/9 mm
[4] Hose attachment, 6 mm/9 mm
[5] Attachment joint, 6 mm/9 mm
U.S.A. tools:
Fuel pressure gauge
Pressure manifold hose
Adaptor
B,
male
Adaptor
B,
female
07 406-0040004
07ZAJ-S5A0111
07ZAJ-S5A0120
07ZAJ-S5A0130
07ZAJ-S5AO 150
07 406-0040008
07 AMJ-HW3A 100
07 AAJ-S6MA200
07 AAJ-S6MA400
Temporarily connect the positive cable
and
negative
cable
to
the battery and fuel pump
5P
connector.
Start the engine and let it idle.
Read the fuel pressure.
STANDARD:
'13 model:
294
kPa (3.0 kgf/cm
2
,
43 psi)
After '13 model: 263 - 316 kPa (2.7 - 3.2 kgf/
cm
2
,38 -
46
psi)
- If the fuel pressure
is
higher than specified, replace
the fuel pump unit (page 7-10).
- If the fuel pressure
is
lower than specified, inspect
the following:
- Fuel line leaking (page 3-6)
- Fuel pump unit (page 7-10)
- Clogged fuel filter (page 7-10)
After inspection, relieve the fuel pressure (page 7-6).
Remove the fuel pressure gauge, attachment and
manifold from the fuel pump.
Connect the fuel pump side quick connect fitting
and
normalize the fuel pressure (page 7-7).
