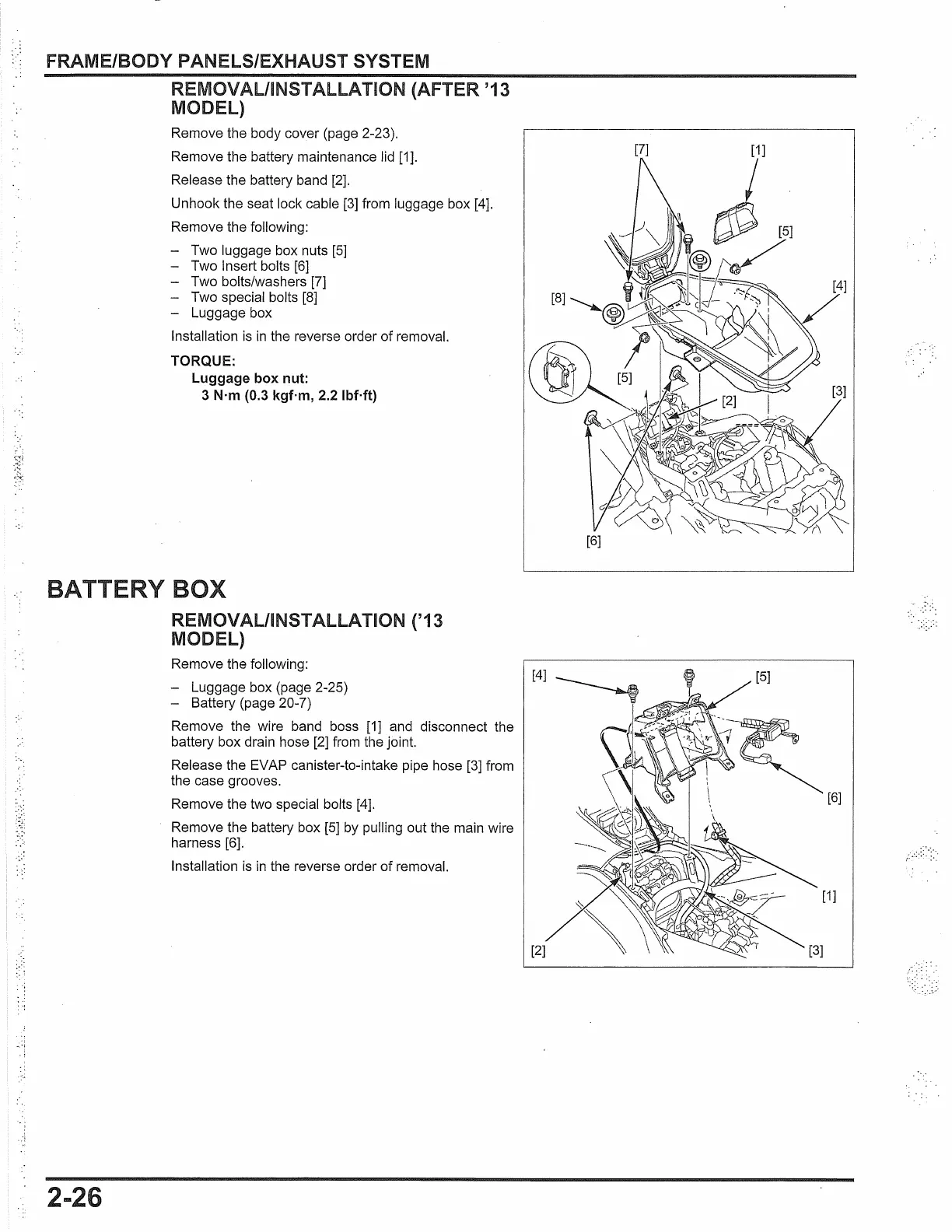

FRAME/BODY PANELS/EXHAUST SYSTEM
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the body cover (page 2-23).
Remove the battery maintenance lid [1].
Release the battery band [2].
Unhook the seat lock cable
[3]
from luggage box [4].
Remove the following:
- Two luggage box nuts
[5]
- Two Insert bolts
[6]
- Two bolts/washers [7]
- Two special bolts
[8]
- Luggage box
Installation
is
in
the reverse order
of
removal.
TORQUE:
Luggage box nut:
3 N·m (0.3 kgf·m, 2.2 lbf·ft)
BATTERY BOX
REMOVAL/INSTALLATION ('13
MODEL)
2-26
Remove the following:
- Luggage box (page 2-25)
- Battery (page 20-7)
Remove the wire band boss
[1]
and disconnect the
battery box drain hose [2] from the joint.
Release the EVAP canister-to-intake pipe hose [3] from
the case grooves.
Remove the two special bolts [4].
Remove the battery box
[5]
by pulling out the main wire
harness [6].
Installation
is
in
the reverse order
of
removal.
[6]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
