Honda PCX150 2014 User Manual

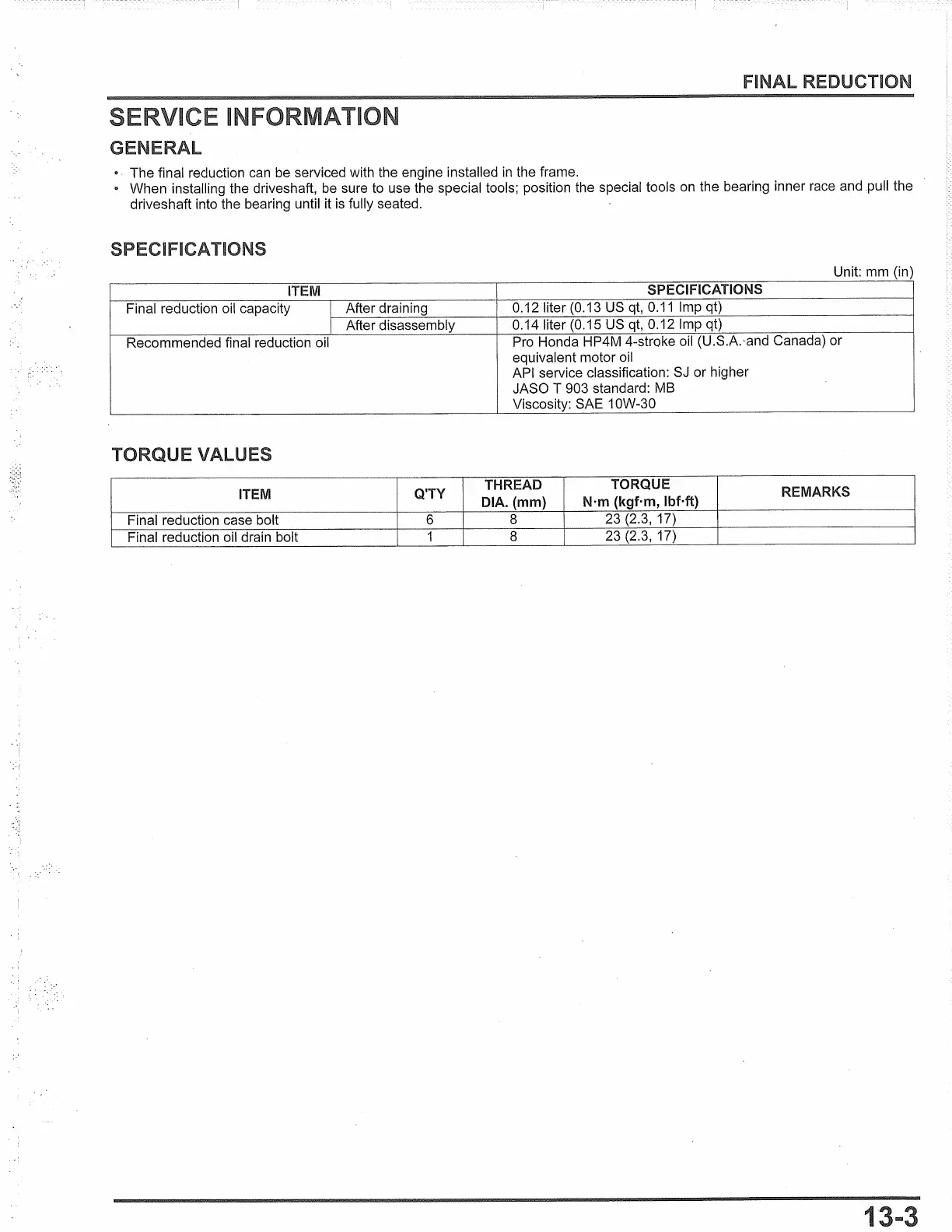

REDUCTION
•
The
final reduction can be serviced with the engine installed
in
the frame.
•
When
installing the driveshaft, be sure to use the special tools; position the special tools on the bearing inner race and pull the
driveshaft into the bearing until it is fully seated.
SPECIFICATIONS
Unit: mm (in)
ITEM
SPECIFICATIONS
Final reduction oil capacity
I
After draining 0.12 liter (0.13 US qt, 0.11 Imp qt)
I
After disassembly 0.14 liter (0.15 US qt, 0.12 Imp qt)
Recommended final reduction oil Pro Honda HP4M 4-stroke oil (U.S.A.-and Canada) or
equivalent motor oil
API service classification: SJ
or
higher
JASO T 903 standard: MB
Viscosity: SAE 1 OW-30
TORQUE VALUES
ITEM
Q'TY
THREAD TORQUE
REMARKS
DIA. (mm)
N·m (kgf·m,
lbMt)
Final reduction case bolt
6 8
23 (2.3, 17)
Final reduction oil drain bolt
1
8 23 (2.3, 17)
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
