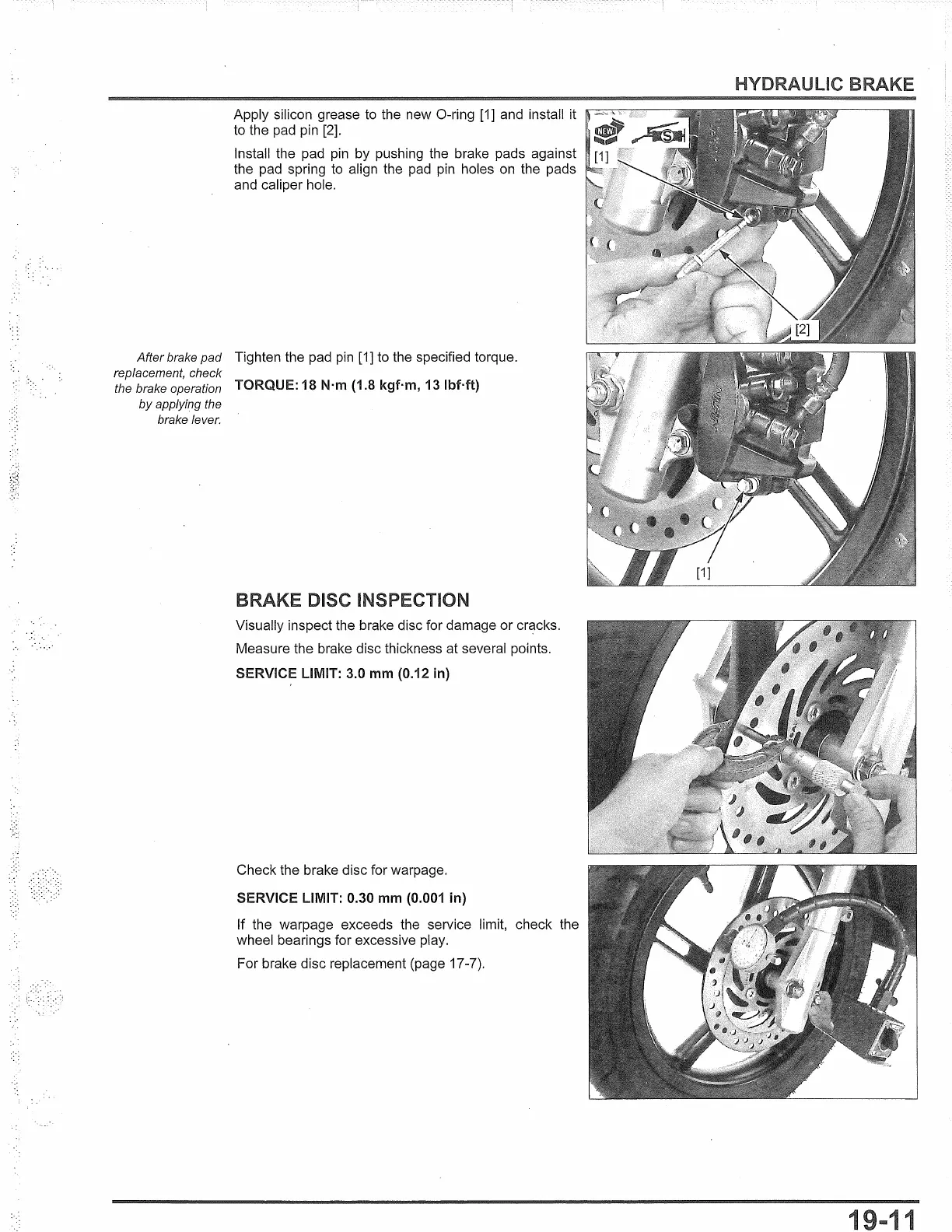

Apply silicon grease to the new 0-ring [1] and install it
to the
pad pin [2].
Install the pad pin by pushing the brake pads against
the pad spring
to align the pad pin holes on the pads
and caliper hole.
After brake pad Tighten the pad pin [1] to the specified torque.
replacement, check
the brake operation
TORQUE: 18 N·m (1.8 kgf·m, 13 lbMt)
by applying the
brake lever.
BRAKE DISC INSPECTION
Visually inspect the brake disc for damage or cracks.
Measure the brake disc thickness at several points.
SERVICE LIMIT: 3.0 mm (0.12 in)
Check the brake disc for warpage.
SERVICE LIMIT: 0.30 mm (0.001 in)
If the warpage exceeds the service limit, check the
wheel bearings for excessive play.
For brake disc replacement (page 17-7).
1 1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
