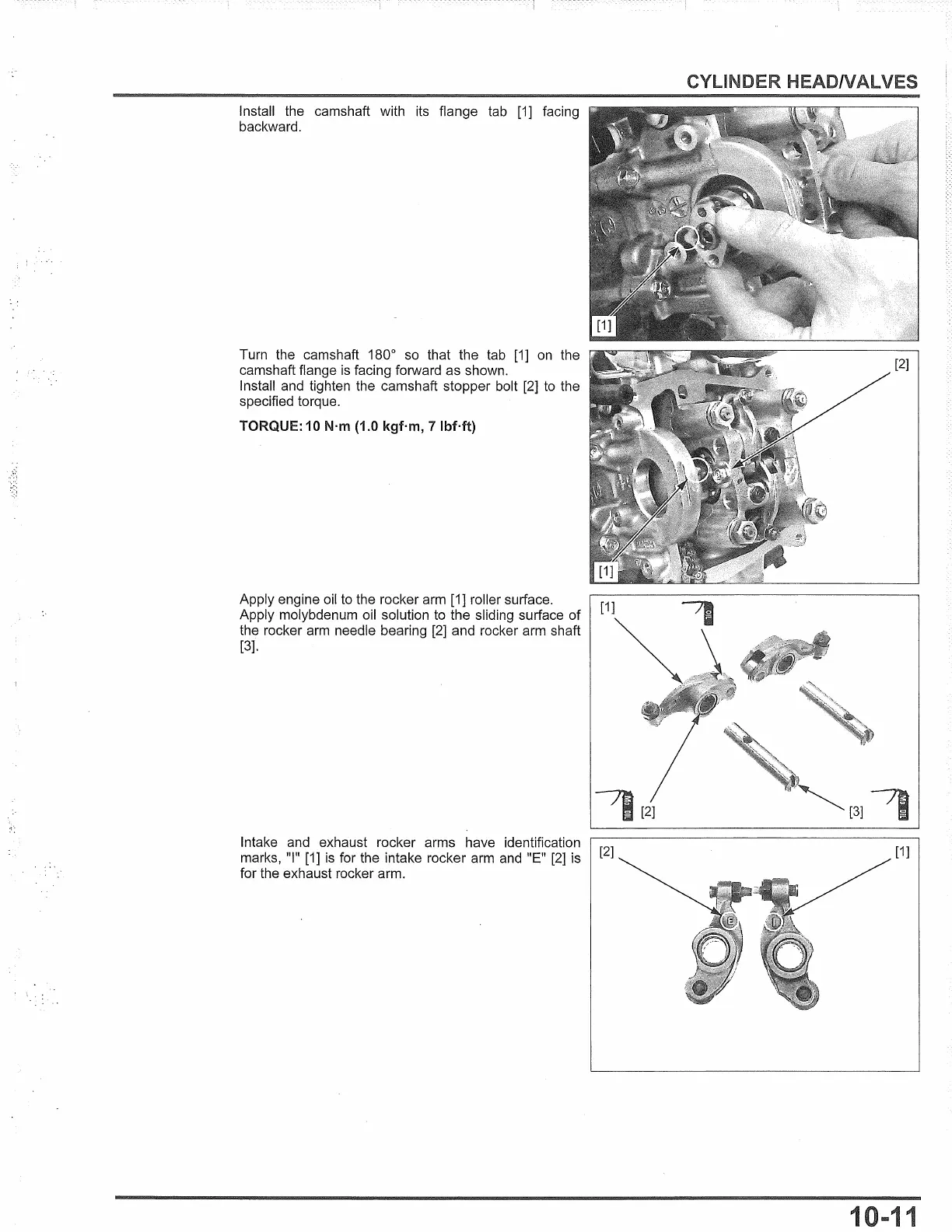

Install the camshaft with
its
flange
tab
[1]
facing
backward.
Turn the camshaft 180°
so
that the
tab
[1]
on
the
camshaft flange
is
facing forward as shown.
Install and tighten the camshaft stopper bolt
[2]
to
the
specified torque.
TORQUE: 10 N·m (1.0 kgf·m, 7
lbMt)
Apply engine
oil
to
the rocker arm [1] roller surface.
Apply molybdenum oil solution
to
the sliding surface of
the rocker arm needle bearing
[2]
and rocker arm shaft
[3].
Intake and exhaust rocker arms have identification
marks, "I"
[1]
is
for the intake rocker arm
and
"E"
[2]
is
for the exhaust rocker arm.
,[2]
[2]
CYLINDER HEADNALVES
[3],
[1]
1 1
