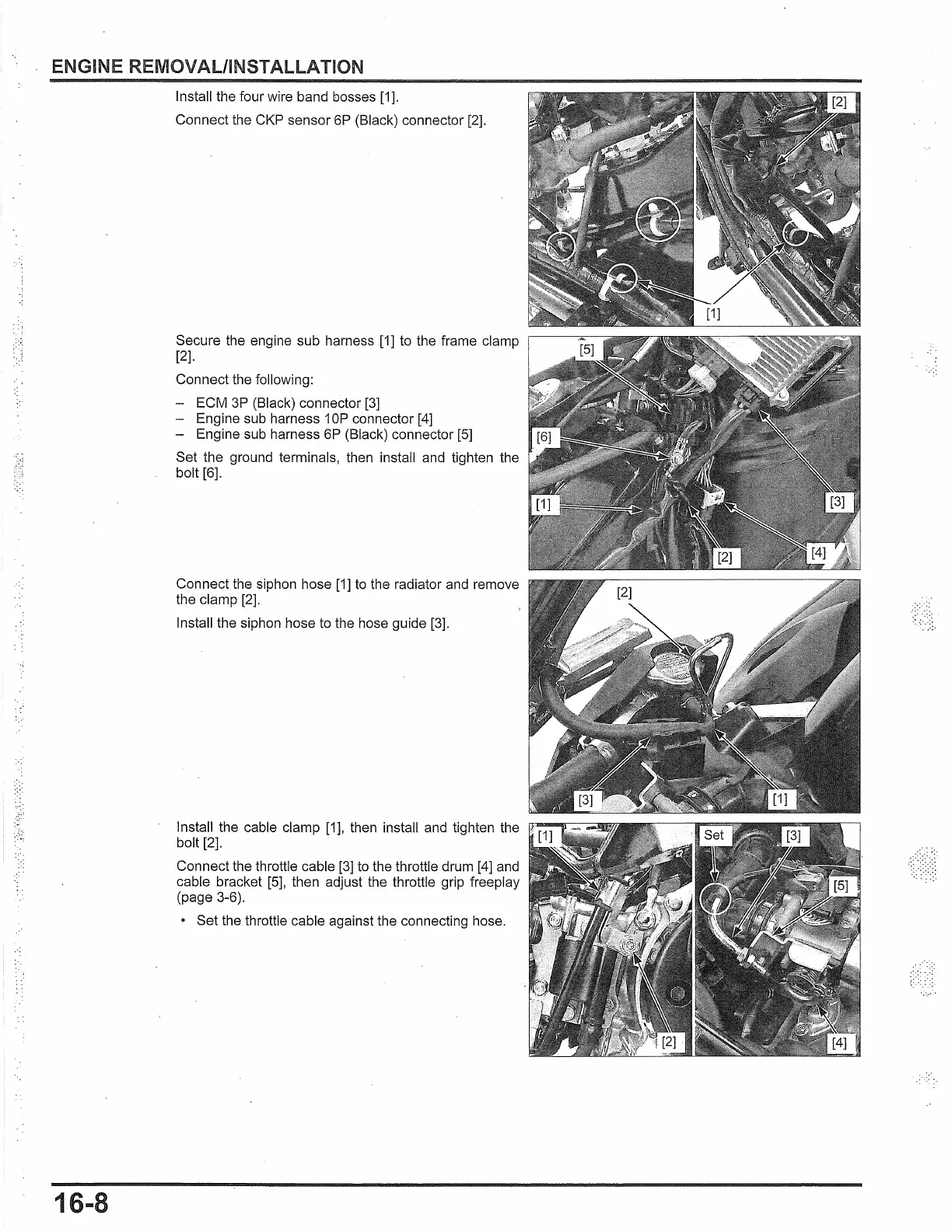

ENGINE REMOVAL/INSTALLATION
16-8
Install the four wire band bosses [1].
Connect the CKP sensor
6P (Black) connector [2].
Secure the engine sub harness
[1] to the frame clamp
[2].
Connect the following:
ECM
3P (Black) connector [3]
- Engine sub harness 1 OP connector [4]
- Engine sub harness 6P (Black) connector [5]
Set the ground terminals, then install and tighten the
bolt [6].
Connect the siphon hose
[1] to the radiator and remove
the clamp [2].
Install the siphon hose to the hose guide [3].
Install the cable clamp [1], then install and tighten the
bolt [2].
Connect the throttle cable
[3] to the throttle drum [4] and
cable bracket
[5], then adjust the throttle grip freeplay
(page 3-6).
• Set the throttle cable against the connecting hose.
