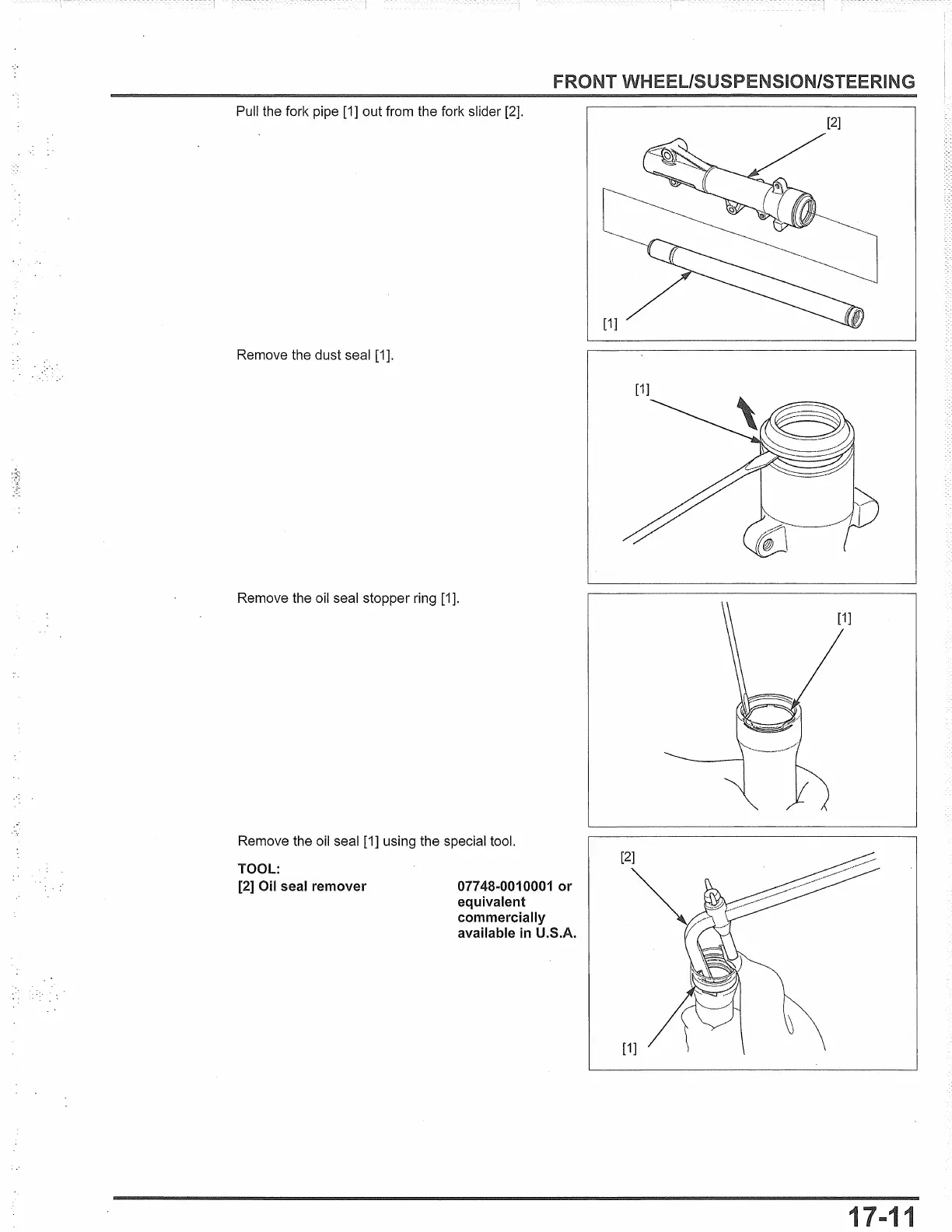

FRONT WHEEL/SUSPENSION/STEERING
Pull the fork pipe [1] out from the fork slider [2].
Remove the dust seal [1].
Remove the oil seal stopper ring [1].
Remove the oil seal [1] using the special tool.
TOOL:
[2] Oil seal remover 07748-0010001
or
equivalent
commercially
available in U.S.A.
