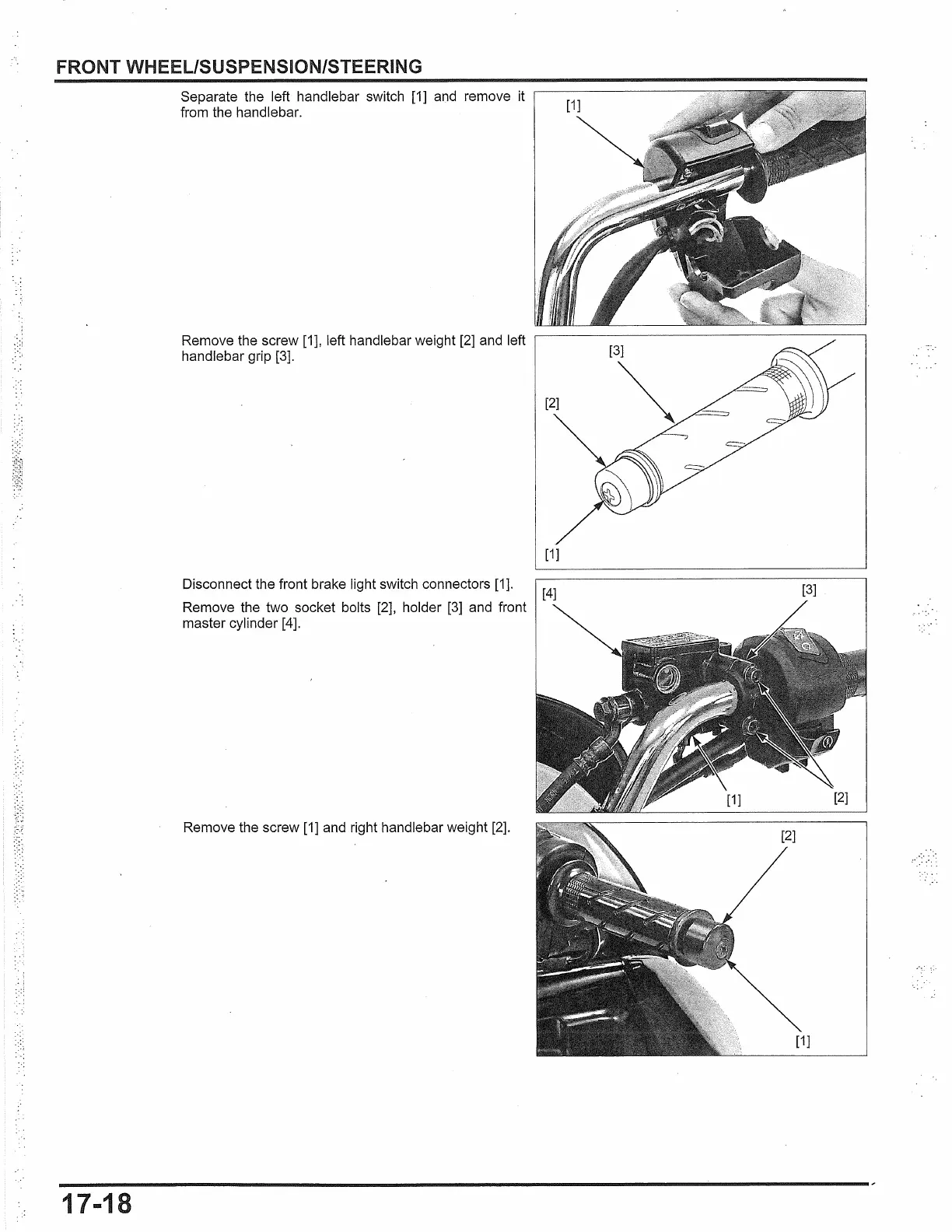

FRONT WHEEL/SUSPENSION/STEERING
17-18
Separate the left handlebar switch
[1]
and
remove it
from the handlebar.
Remove the screw
[1],
left handlebar weight
[2]
and left
handlebar grip [3].
Disconnect the front brake light switch connectors
[1].
Remove the two socket bolts [2], holder
[3]
and front
master cylinder [4].
Remove the screw
[1]
and right handlebar weight
[2].
[1]
