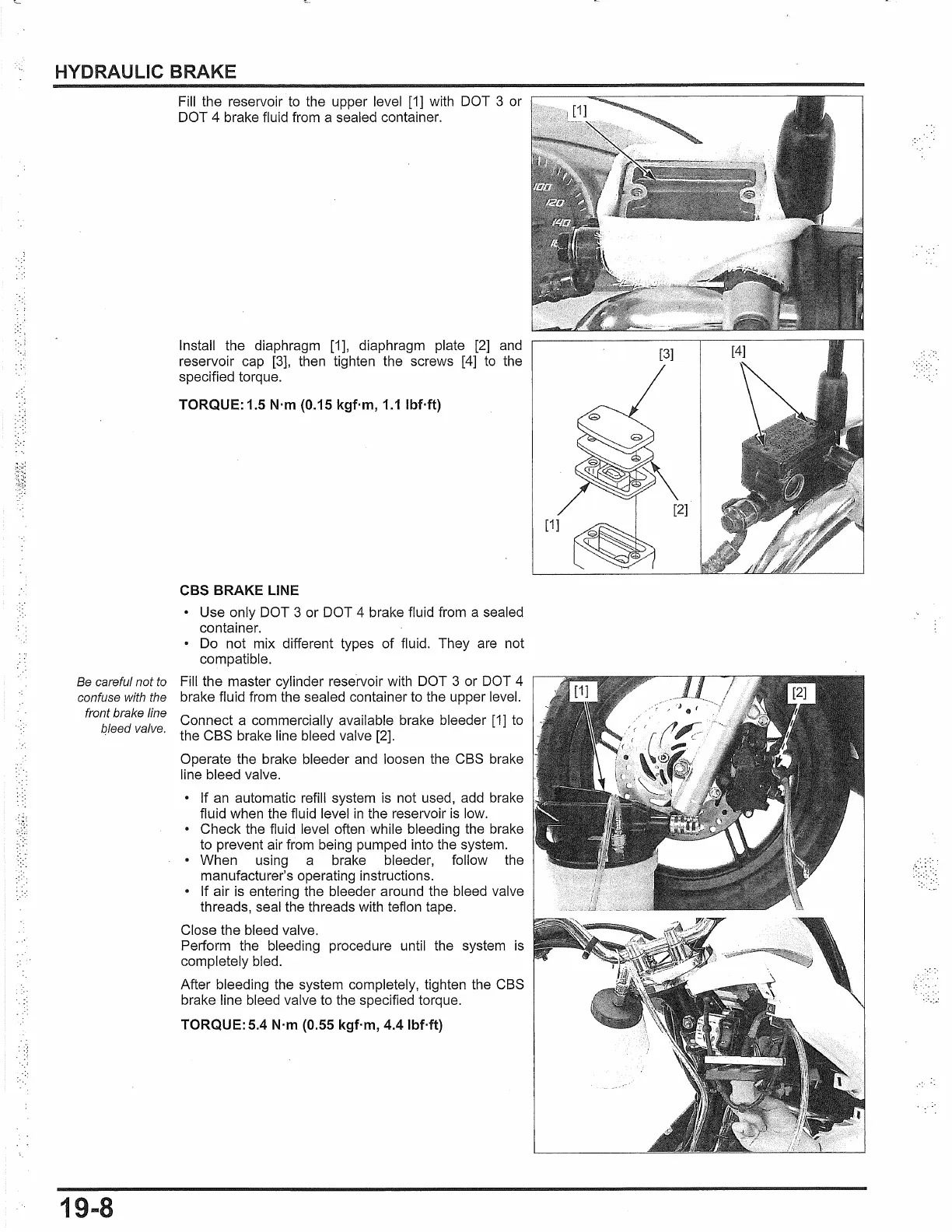

HYDRAULIC BRAKE
Fill the reservoir
to
the upper level
[1]
with DOT 3 or
DOT 4 brake fluid from a sealed container.
Install the diaphragm
[1],
diaphragm plate
[2]
and
reservoir cap
[3],
then tighten the screws
[4]
to
the
specified torque.
TORQUE: 1.5 N·m (0.15 kgf·m,
1.1
lbMt)
CBS BRAKE LINE
• Use only DOT 3 or DOT 4 brake fluid from a sealed
container.
•
Do
not mix different types of fluid. They are not
compatible.
Be careful
not
to
Fill the master cylinder reservoir with DOT 3 or DOT 4
confuse with the
brake fluid from the sealed container
to
the upper level.
front brake line
bleed valve.
Connect a commercially available brake bleeder
[1]
to
19-8
the CBS brake line bleed valve
[2].
Operate the brake bleeder and loosen the CBS brake
line bleed valve.
• If
an
automatic refill system
is
not used, add brake
fluid when the fluid level
in
the reservoir
is
low.
• Check the fluid level often while bleeding the brake
to
prevent air from being pumped into the system.
When using a brake bleeder, follow the
manufacturer's operating instructions.
• If air is entering the bleeder around the bleed valve
threads, seal the threads with teflon tape.
Close the bleed valve.
Perform the bleeding procedure until the system
is
completely bled.
After bleeding the system completely, tighten the
CBS
brake line bleed valve
to
the specified torque.
TORQUE: 5.4 N·m (0.55 kgf·m, 4.4 lbMt)
