Honda PCX150 2014 User Manual

< HYDRAULIC BRAKE

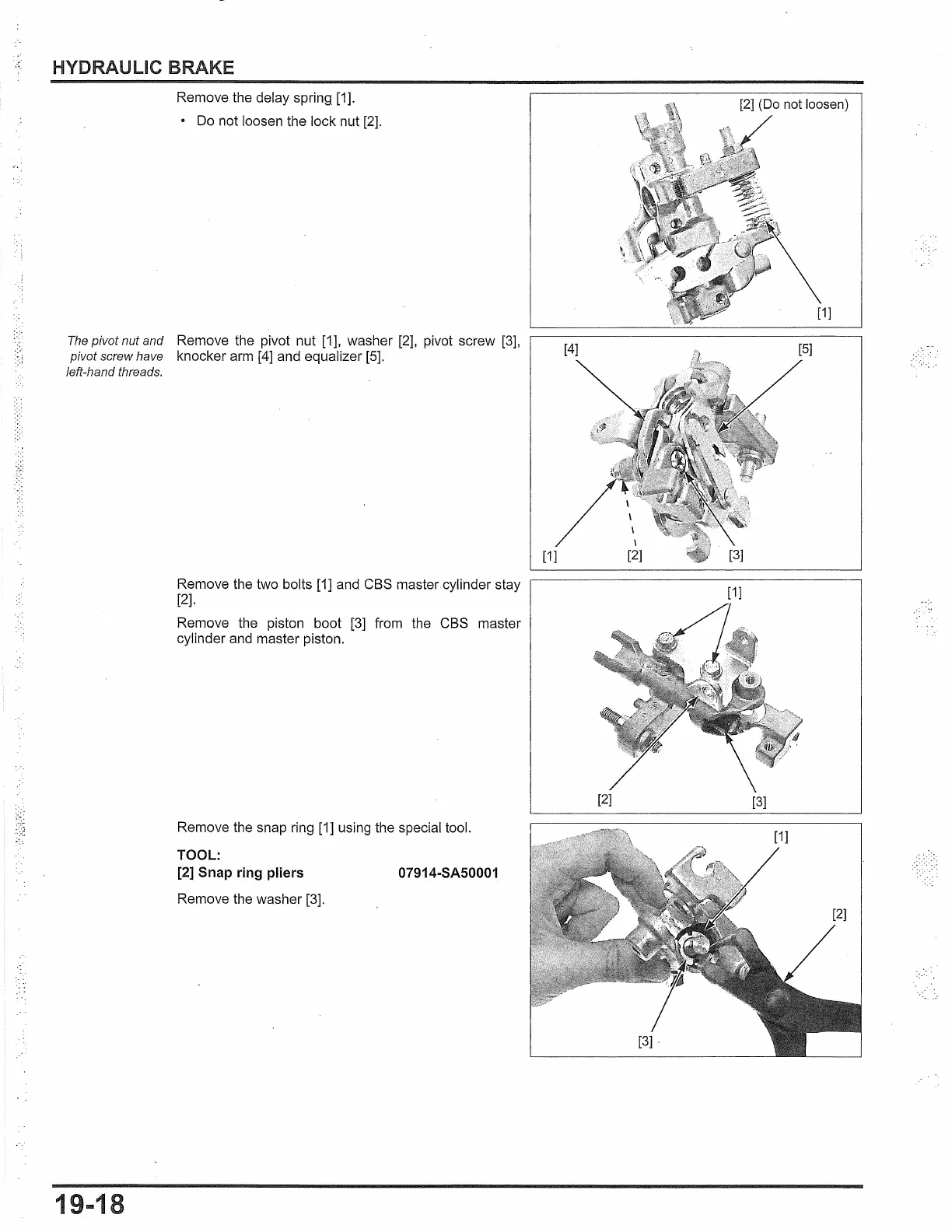

Remove the delay spring_ [1].
•
Do not loosen the lock nut [2].
The pivot nut and Remove the pivot nut [1], washer [2], pivot screw [3],
pivot screw have knocker arm [4] and equalizer [5].
left-hand threads.
19-18
Remove the two bolts [1] and CBS master cylinder stay
[2].
Remove the piston boot [3] from the CBS master
cylinder and master piston.
Remove the snap ring [1] using the special tool.
TOOL:
[2] Snap ring pliers
07914-SA50001
Remove the washer [3].
[2] (Do not loosen)
[1]
[2]
[3]
·.· .. '.:

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
