Honda PILOT 2021 - Fuse Locations

703
Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

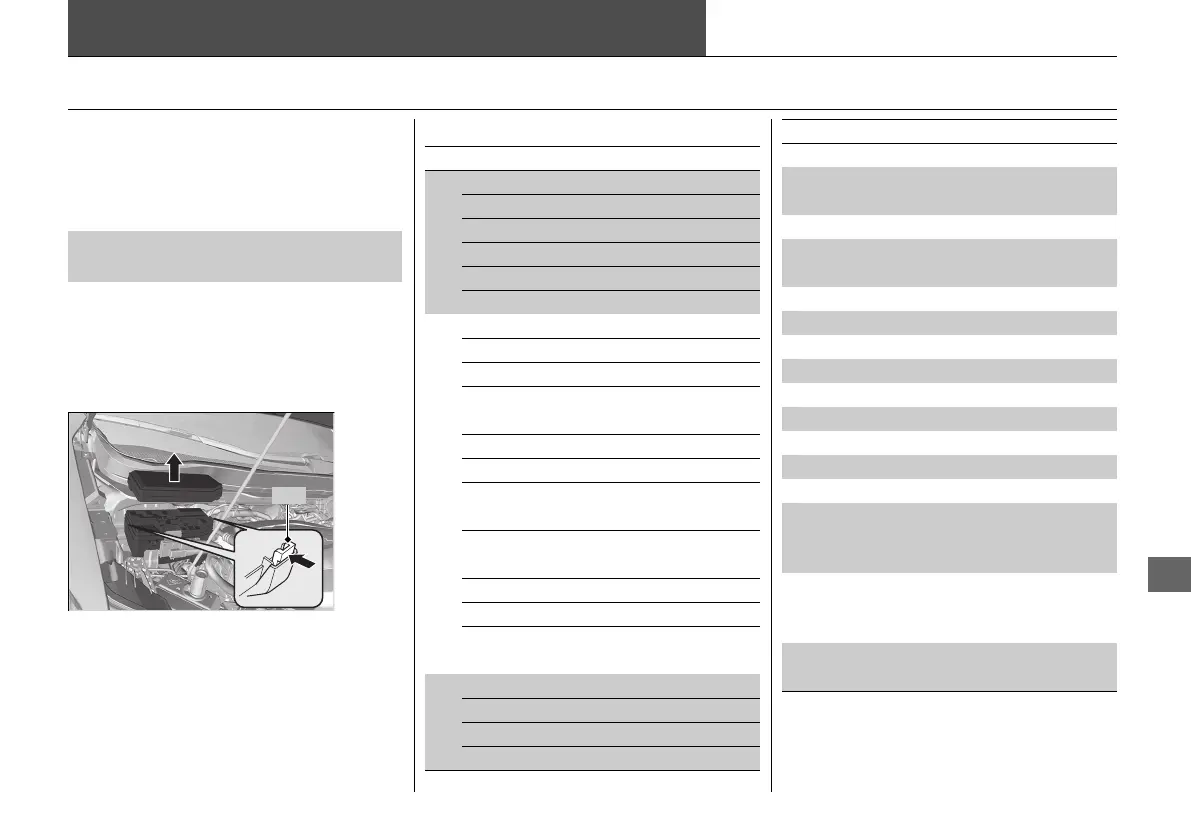

Located near the passenger's side damper
house. Push the tabs to open the box.
■
Engine Compartment Fuse
Box Type A
Tab
■
Circuit protected and fuse rating
Circuit Protected Amps
1
− (70 A)
REAR BLOWER 30 A
ABS/VSA MTR 40 A
ABS/VSA FSR 20 A
MAIN FAN 30 A
MAIN FUSE 150 A
2
SUB FAN 30 A
WIP MTR 30 A
WASHER 20 A
SUNSHADE
*1
(20 A)
−
*2
ENGINE MOUNT 30 A
FRONT BLOWER 40 A
A/C INVERTER
*1
(30 A)
−
*2
STANDARD AMP
*1
(30 A)
−
*2
REAR DEF 40 A
− (30 A)
PREMIUM AMP
*1
(20 A)
−
*2
3
− −
− −
− −
− −
*1:Models with Display Audio
*2:Models with color audio system
4 PARKING LIGHT 10 A
5
CRUISE CANCEL SW (7.5 A)
*1
− −
*2
6 STOP LIGHT 10 A
7
FI SUB VSS (10 A)
*1
− −
*2
8L H/L LO 10 A
9 − −
10 R H/L LO 10 A
11 IGPS 7.5 A
12 INJECTOR 20 A
13 H/L LO MAIN 20 A
14 FI-ECU BACKUP (10 A)
15 FRONT FOG
*
(10 A)
16 HAZARD 15 A
17
PASSENGER P/SEAT
(RECLINE)
*
(20 A)
*1
− −
*2
18
PASSENGER P/SEAT
(SLIDE)
*
(20 A)
*1
−−
*2
19
PREMIUM AMP
*
(20 A)
*1
− −
*2
Circuit Protected Amps
* Not available on all models
