uuFusesuFuse Locations
Handling the Unexpected
*1:Models with Display Audio
*2:Models with color audio system
Circuit Protected Amps
20 MG CLUTCH 7.5 A
21 MAIN RLY 15 A
22 FI SUB 15 A
23 IG COIL 15 A
24 DBW 15 A
25 SMALL/STOP MAIN 20 A
26 BACK UP 10 A
27
HTD STRG WHEEL
*
(15 A)
*1
− −
*2
28 HORN 10 A
29 RADIO
15 A
*1
20 A
*2
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

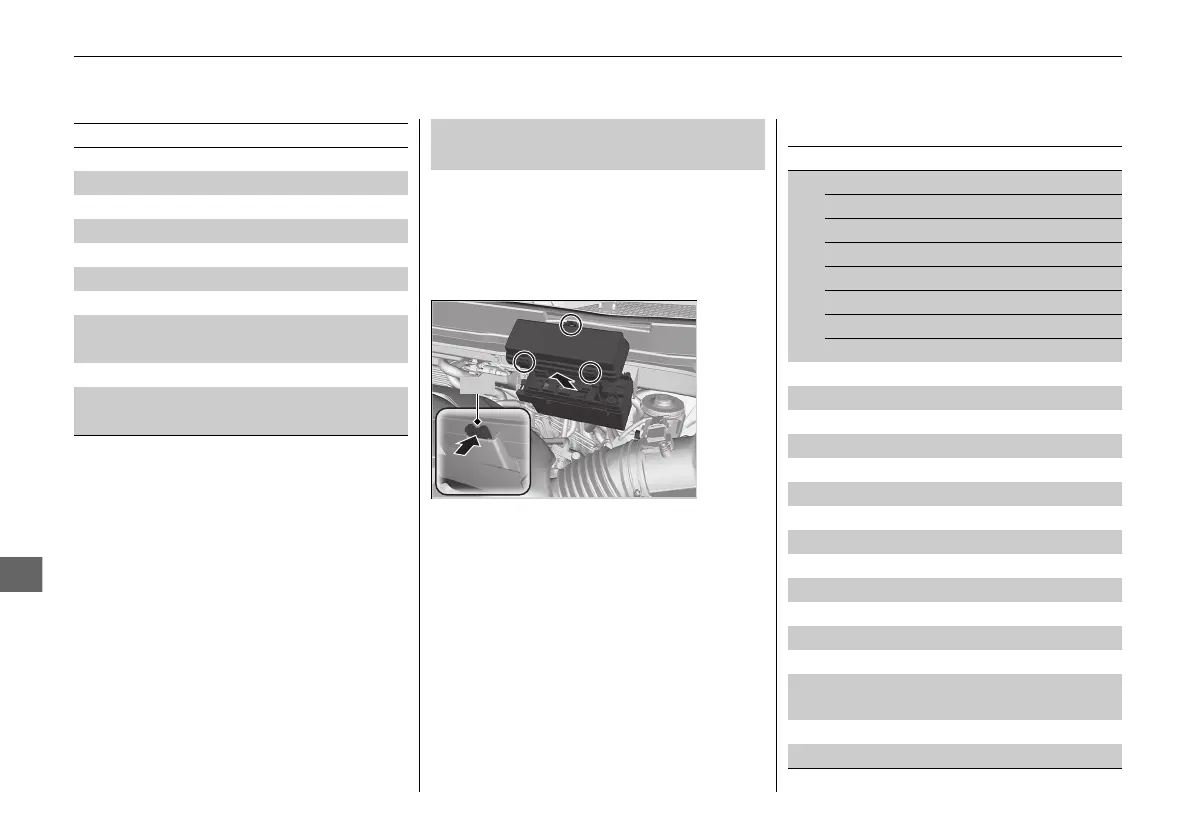

Located near the brake fluid reservoir. Push
the tabs to open the box.
■
Engine Compartment Fuse
Box Type B
Tab
■
Circuit protected and fuse rating
Circuit Protected Amps
1
ST CUT1
*
(40 A)
4WD
*
(20 A)
IG MAIN 30 A
IG MAIN2 30 A
P/TAILGATE MOTOR
*
(40 A)
F/B MAIN2 60 A
F/B MAIN 60 A
EPS 60 A
2 TRAILER MAIN (30 A)
3 TRAILER E-BRAKE (20 A)
4 BATTERY SENSOR 7.5 A
5 H/L HI MAIN 20 A
6 P/TAILGATE CLOSER
*
(20 A)
7 CTR ACC SOCKET 20 A
8 REAR ACC SOCKET
*
(20 A)
9 FRONT WIPER DEICER
*
(15 A)
10 ACC/IG2_MAIN 10 A
11 TRAILER CHARGE (20 A)
12 IDLE STOP ST CUT (30 A)
13 IDLE STOP (30 A)
14 IDLE STOP (30 A)
15
ELECTRONIC GEAR
SELECTOR
(15 A)
16 REAR HEATED SEAT
*
(20 A)
17 ST CUT FEED BACK 7.5 A
* Not available on all models
