705
uuFusesuFuse Locations
Continued
Handling the Unexpected

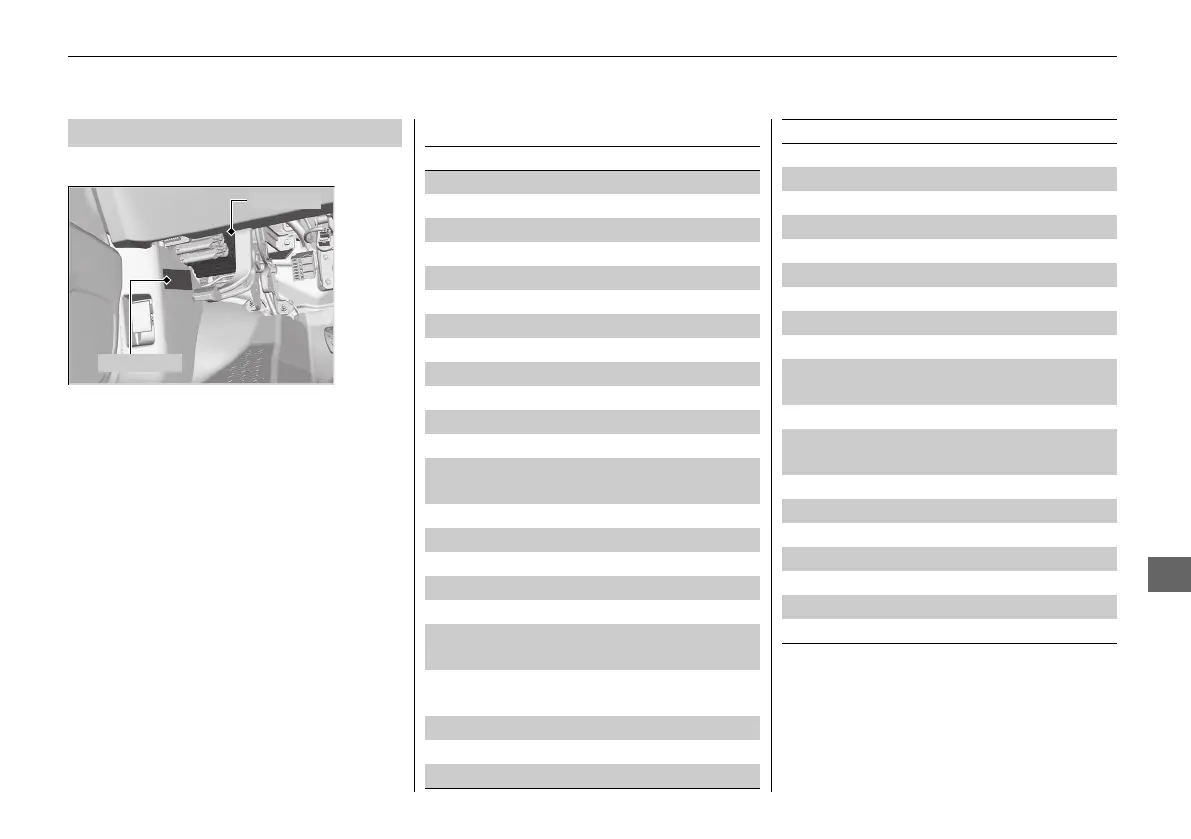

Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■
Interior Fuse Box Type A
Fuse Box
Fuse Label
■
Circuit protected and fuse rating
Circuit Protected Amps
1 DRIVER P/WINDOW 20 A
2 DOOR LOCK 20 A
3 SMART 7.5 A
4 PASSENGER P/WINDOW 20 A
5 FRONT ACC SOCKET 20 A
6 FUEL PUMP 20 A
7 ACG 15 A
8 FRONT WIPER 7.5 A
9 IG1 SMART 7.5 A
10 SRS 10 A
11 DRIVER REAR P/WINDOW 20 A
12 − −
13
PASSENGER REAR
P/WINDOW
20 A
14 FUEL LID 20 A
15 DRIVER P/SEAT (RECLINE)
*
(20 A)
16 − (7.5 A)
17 FRONT SEAT HEATER
*
(20 A)
18 INTR LT 7.5 A
19
DRIVER REAR
DOOR UNLOCK
10 A
20
PASSENGER SIDE
DOOR UNLOCK
10 A
21 DRL 7.5 A
22 KEY LOCK 7.5 A
23 A/C 7.5 A
24 IG1a FEED BACK 7.5 A
25 INST PANEL LIGHTS 7.5 A
26 LUMBAR SUPPORT
*
(10 A)
27 PARKING LIGHTS 7.5 A
28 OPTION 10 A
29 BACK LT 7.5 A
30 REAR WIPER 10 A
31 ST MOTOR 7.5 A
32 SRS 7.5 A
33
PASSENGER SIDE
DOOR LOCK
10 A
34 DRIVER SIDE DOOR LOCK 10 A
35
DRIVER SIDE
DOOR UNLOCK
10 A
36 DRIVER P/SEAT (SLIDE)
*
(20 A)
37 PASSENGER H/L HI 10 A
38 DRIVER H/L HI 10 A
39 IG1b FEED BACK 7.5 A
40 ACC 7.5 A
41 DRIVER REAR DOOR LOCK 10 A
42 − −
Circuit Protected Amps
* Not available on all models
