Honda tourer - Fuses Locations (Diesel Models)

No.
CONTINUED
Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Left Headlight Low Beam
(Rear Demister Coil)
Left Headlight High Beam
Small Light
Right Headlight High Beam
Right Headlight Low Beam
Back Up
FI ECU (ECM)
Condenser fan
IGP2
PTC
Option
Horn, Stop
Rear Demister
Back Up, ACC
Hazard
VSA Motor
Taking Care of the Unexpected

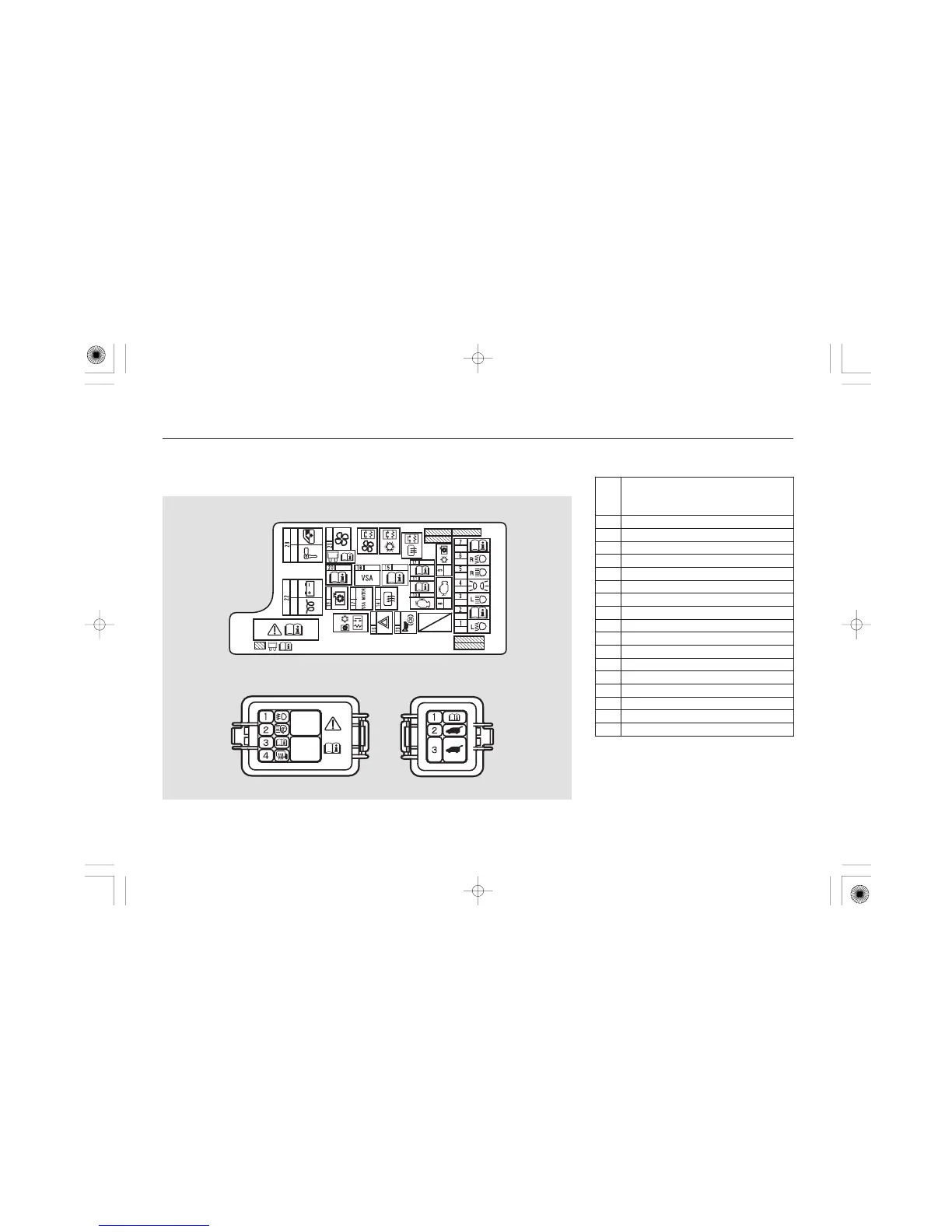

Fuse Locations (Diesel models)
On vehicles with VSA
551
UNDER-BONNET FUSE/RELAY BOX
PRIMARY FUSE BOX
Primary Fuse Box
MINI FUSE BOX 1
MINI FUSE BOX 2
