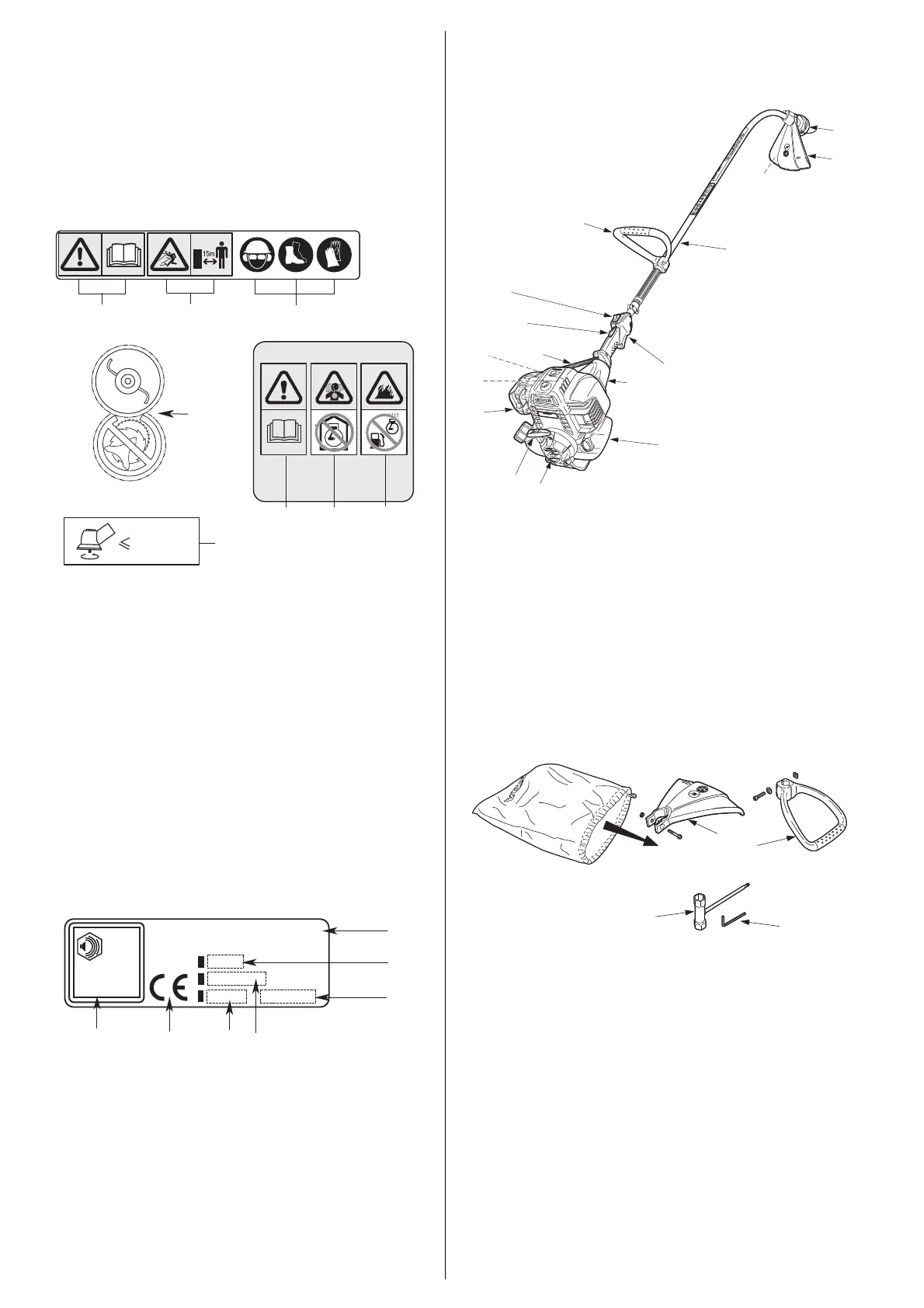

SAFETY STICKERS
Your grass trimmer must be used with care.
For this reason, adhesive labels in the form of pictograms have been
placed on the machine to remind you of the main operating
precautions. Their meanings are specified below. These labels are
considered to be an integral part of the machine. If any of them comes
off or becomes difficult to read, please contact your dealer to replace
it. We also recommend that you should carefully read all the
safety instructions (see page2).
IDENTIFICATION OF MACHINE
GENERAL DESCRIPTION
IDENTIFICATION OF COMPONENTS
CONTENTS OF BAG
[1] WARNING: Read the instructions carefully, and follow all
warnings and safety instructions.
[2] WARNING: Projection hazard. Ensure that all people and
animals stay at a minimum distance of 15 m when you
operate the machine.
[3] Wear eyes and ears protection, a hard hat, protective shoes
and gloves.
[4] The grass trimmer is to be used with a flexible cutting
means only. Do not use a circular saw blade or a metal disc.
[5] Cutting attachment rotation speed.
[6] The engine emits toxic carbon monoxide. Do not run in an
enclosed area.
[7] Petrol is highly flammable. Stop the engine before
refueling.
[8] Sound power level
[9] CE marking
[10] Model - Type
[11] Model - Name
[12] Year of manufacture
[13] Serial number
[14] Name and address of manufacturer
[4]
Cutting attachment
Rotating speed
General instructions
[1]
[2] [3]
[1] [6]
[7]
[5]
n/min.
XXXX
[A] Identication plate
[13]
[14]
[10] [11]
[12]
[8]
dB
-----
WA
L
[9]
[15] Engine [23] Throttle control trigger
[16] Spark plug [24] Start / Stop switch
[17] Recoil starter [25] Transmission shaft
[18] Air filter [26] Cutting attachment guard
[19] Fuel tank [27] Flexible cutting means
[20] Throttle cable [28] Bike handle
[21] Clutch housing [29] Line cutter
[22] Control grip
[30] Spark plug wrench/Torx wrench
[31] Hexagonal wrench
[32] Guard, screw and nut
[33] Handle, screw and nut
[15]
[29]
[27]
[A]
[25]
[21]
[22]
[19]
[18]
[20]
[28]
[23]
[24]
[17]
[26]
[16]
