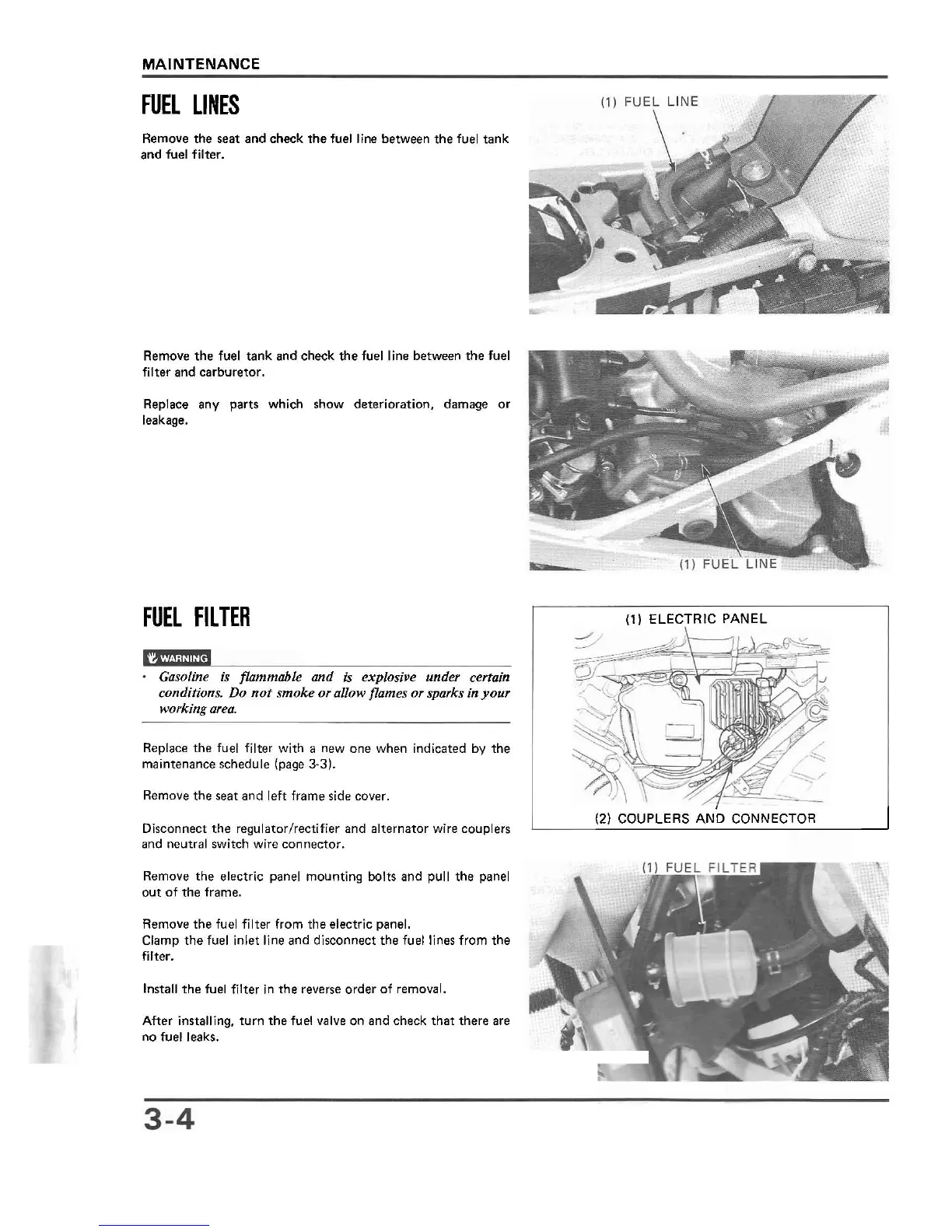

MAINTENANCE
FUEL LINES
Remove the seat and check the fuel line between the fuel tank
and fuel filter.
Remove
the fuel tank and check the fuel line between the fuel
filter and carburetor.
Replace any parts which show deterioration, damage or
leakage.
FUEL FILTER
'#§i,i/.\;piWa
Gasoline is flammable and is explosive under certain
conditions. Do not smoke or allow flames or sparks in your
working area.
Replace the fuel filter with a new one when indicated by the
maintenance schedule (page 3-3).
Remove the seat and left frame side cover.
Disconnect
the regulator/rectifier and alternator wire couplers
and neutral switch wire connector.
Remove the electric panel mounting bolts and pull the panel
out of the frame.
Remove the fuel filter from the electric panel.
Clamp the fuel inlet line and disconnect the fuel line, from the
filter.
Install the fuel filter in the reverse order of removal.
After installing, turn the fuel valve on and check that there are
no
fuel leaks.
3-4
(1) ELECTRIC PANEL
(2)
COUPLERS AND CONNECTOR

Honda VF1000F 1985 Specifications

General

Displacement	998 cc
Compression Ratio	10.5:1
Ignition	Electronic
Transmission	5-speed
Final Drive	Shaft
Engine Type	Liquid-cooled, 4-stroke, DOHC, 90-degree V4
Bore x Stroke	77.0 mm x 53.6 mm
Fuel System	Four 36mm Keihin carburetors
Front Suspension	Telescopic fork
Rear Suspension	Pro-Link single shock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	130/80 V18
Max Power	113 hp @ 10, 500 rpm
