83
THROTTLE OPERATION
Refer to the Safety Precautions on page 67.
1. Check for smooth rotation of the throttle
grip from the fully open to the fully closed
position at both full steering positions.
2. Measure the throttle grip free play at the
throttle grip flange. The standard free play
should be approx:
2-6 mm(0.08-0.24 in)

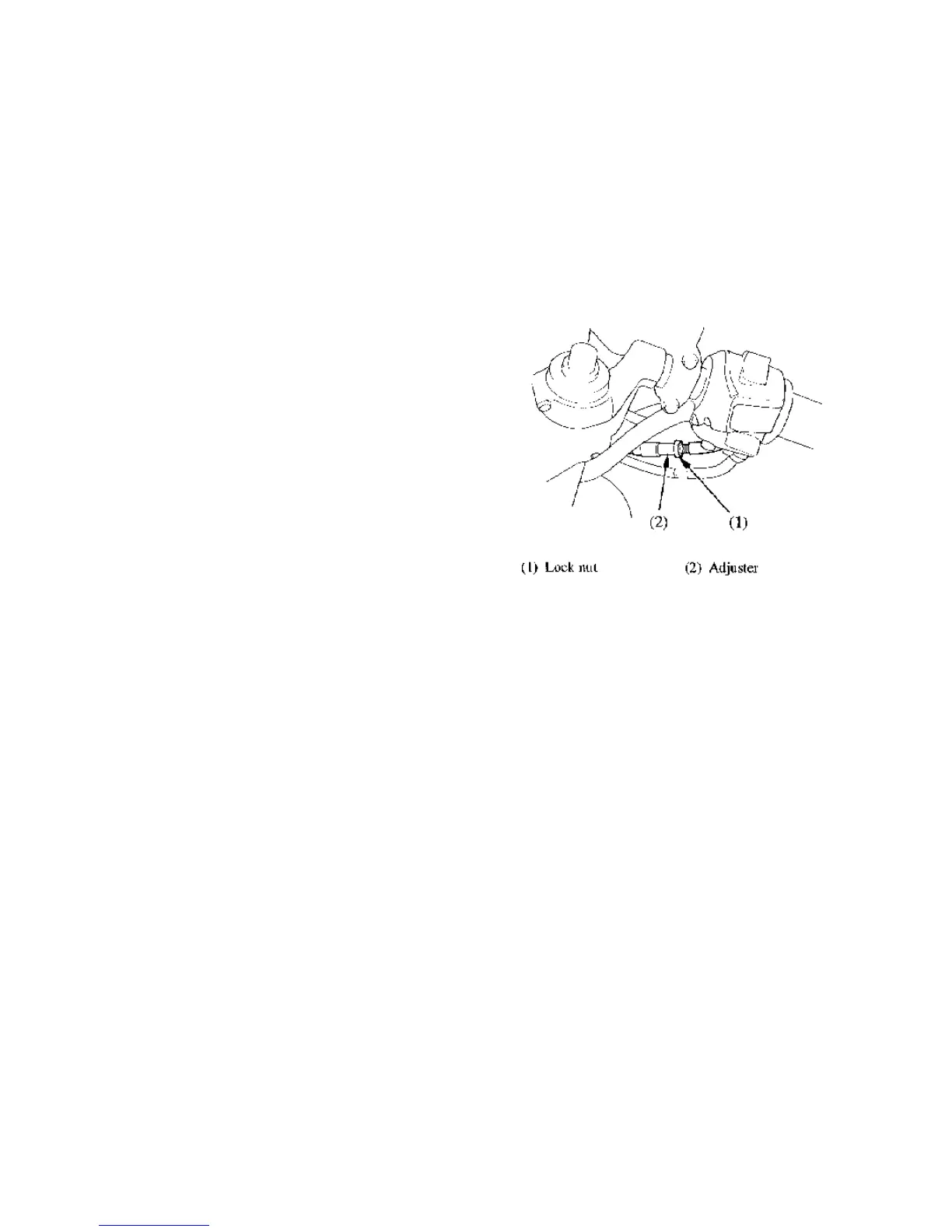

To adjust play, loosen the lock nut (1) and turn
the adjuster (2).
