Tyre Puncture u Removing Wheels
83
continued
Installation
1.
Attach the side collar and speedometer
gearbox to the wheel.
2.
Position the wheel between the fork legs
and insert the front axle shaft from the right
side, through the right fork leg and wheel
hub.
3.
Make sure that the lug on the left fork leg is
located in the slot of the speedometer
gearbox.
4.
Tighten the front axle nut.
5.
After installing the wheel, apply the brake
lever several times and then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
6.
Install the speedometer cable securely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
When installing a wheel or caliper into original position,
carefully fit the brake disc between the pads to avoid
scratching them.
Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft)

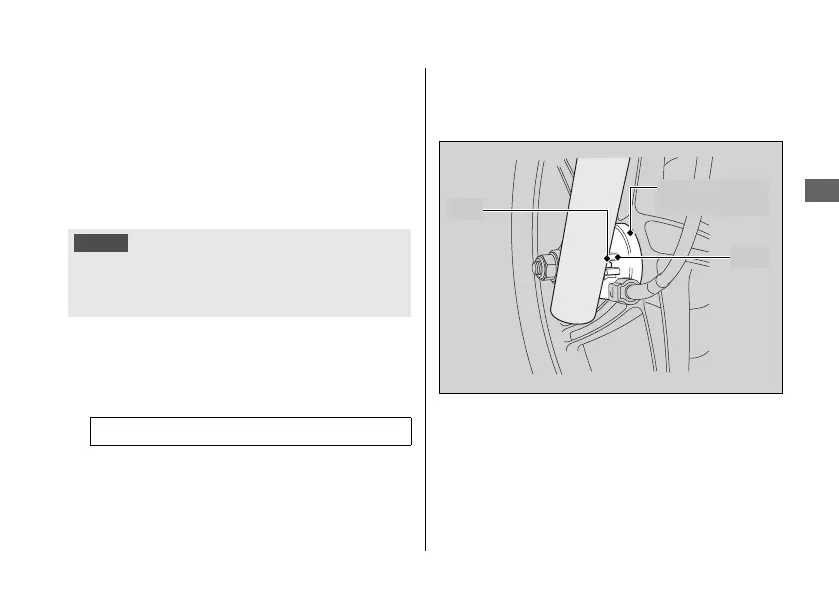

Lug
Speedometer
gearbox
Slot
