C7189U REMOTE INDOOR SENSOR
69-1710EFS—04 2
INSTALLATION
Installation Tips
Install the sensor about 5 feet (1.5m) above the floor in an area with good air circulation at average temperature.
Maximum distance between remote sensor and the thermostat is 200 feet. See Fig. 2.
CAUTION
Electrical Hazard
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.

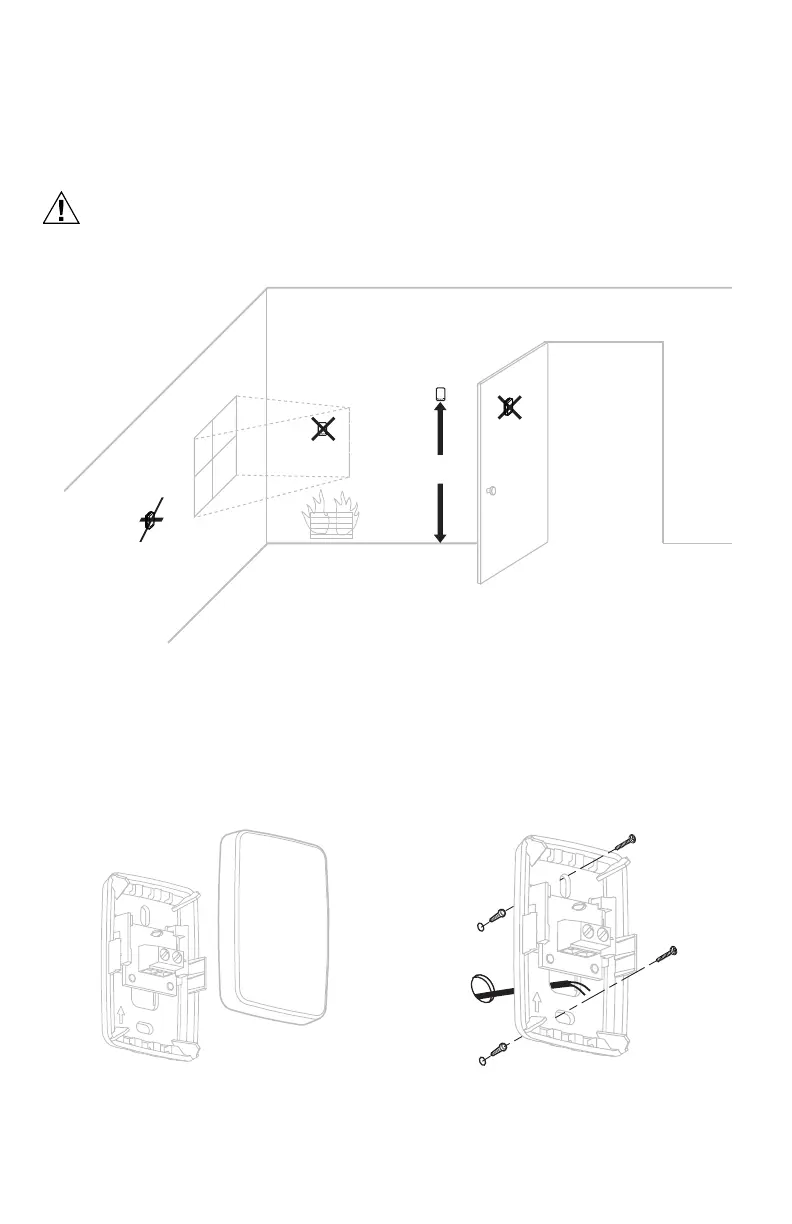

Fig. 2. Typical location for C7189U Sensor.
Remote Sensor Wallplate Installation
Remove the cover from the remote sensor as shown in Fig. 3.
1. Pull wires through wire hole.
2. Position wallplate on wall, level and mark screw hole positions with pencil.
3. Drill holes at marked positions, then tap in supplied wall anchors.
4. Place wallplate over anchors, insert and tighten mounting screws. See Fig. 4.
Fig. 3. Remove the cover. Fig. 4. Mount wallplate to wall.
5 FEET
(1.5 METERS)
YES
NO
NO
NO
M24115A
M24056A
UP
M24057A
UP
