HE360 HUMIDIFIER AND INSTALLATION KIT
5 69-2629EF—09

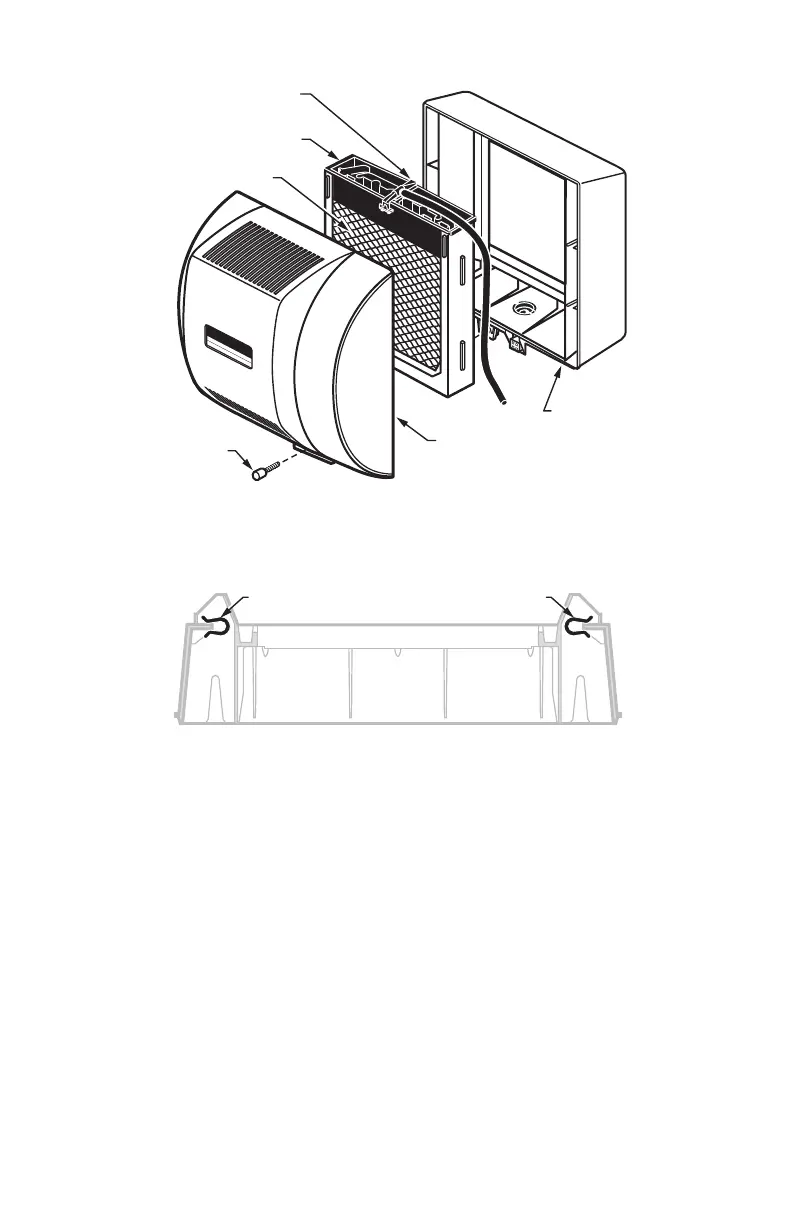

Fig. 3. Disassembling humidifier.
7. Position the securing clips as shown in Fig. 4.
Fig. 4. Position securing clips.
8. Make sure the humidifier housing is level, then position it in the opening so the plastic tabs are in place on
the lower sheet metal edge of the opening. Use pliers, as necessary, to flatten cut edges. See Fig. 5.
9. Push in securing clips until completely seated.
10. Drill holes and install the three sheet metal screws on the top of the humidifier housing. Secure the
housing with the three remaining screws.
M12809A
COVER
ASSEMBLY
HUMIDIFIER
PAD ASSEMBLY
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
HOUSING
THUMB
SCREW
M12813B
CLIP
CLIP
TOP VIEW – HUMIDIFIER HOUSING
