Honeywell Home RTH2300 Series User Manual

4
Do not remove wallplate yet

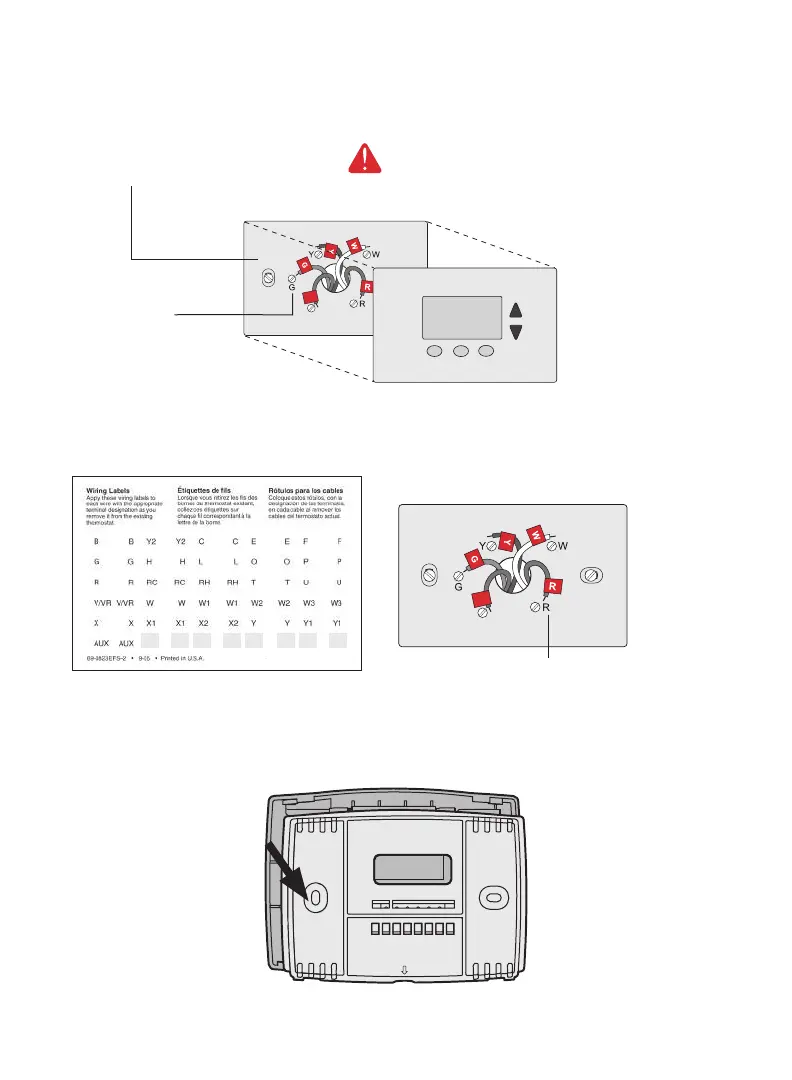

3 Label Wires with Tags
Label the wires using the supplied wire labels as you disconnect them.
Wire Labels
M32731
TO REMOVE WALLPLATE
PULL HERE
Wallplate
C
C
MCR33823
Terminal
designation
If you have an older thermostat with a
sealed mercury tube, turn to page 2
for proper disposal instructions.
Terminal designation
C
C
MCR31537
2 Remove Old Thermostat
Remove old thermostat but leave wallplate with wires attached.
4 Separate Wallplate from New Thermostat
Remove wallplate from the new thermostat and mount onto wall.

Honeywell Home RTH2300 Series Specifications

General

Display Type	Digital
Power Source	Battery (2 AA)
Stages	1 Heat/1 Cool
Temperature Range	40°F to 90°F (4°C to 32°C)
Hold Feature	Yes
Filter Change Alert	No
Programmable	Yes
Temperature Control	Precise Temperature Control (+/- 1 degree F)
Weight	0.5 lbs
Compatibility	Single Stage Systems (Heat & Cool)
