Honeywell Home RTH2300 Series - Mount Wallplate; Connect Wires

5

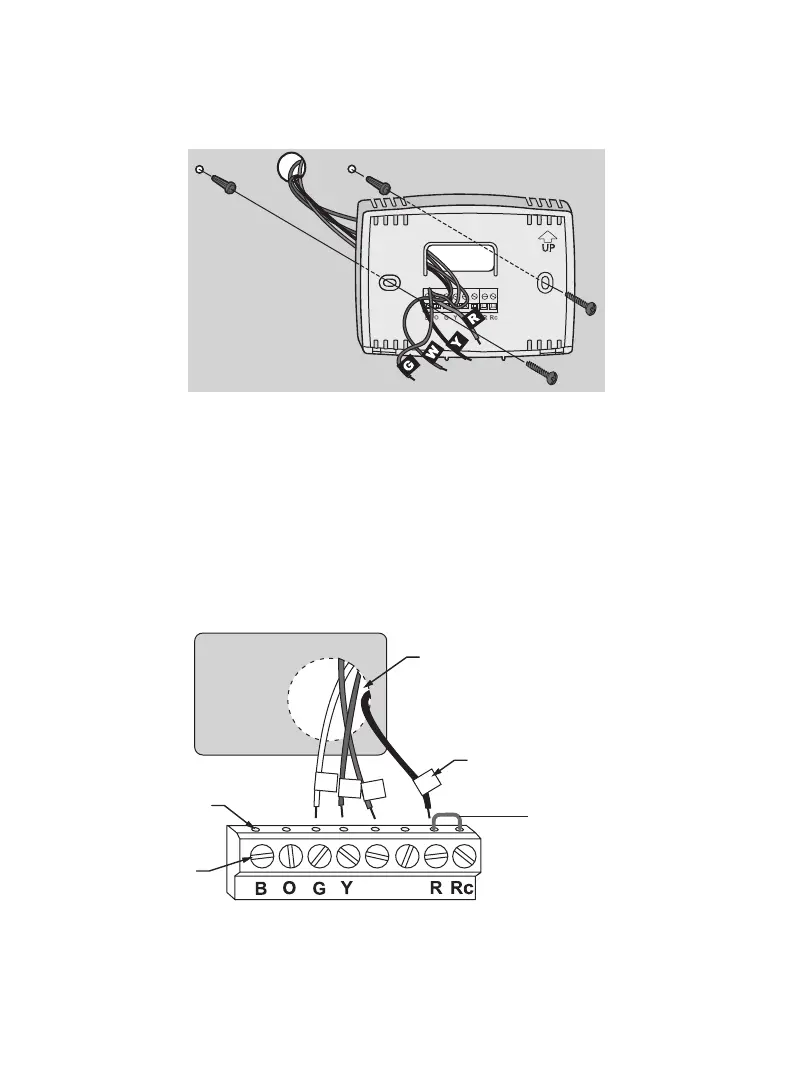

5 Mount Wallplate
Mount the new wallplate using the included screws and anchors.
Drill 3/16-in. holes for drywall
Drill 3/32-in. holes for plaster
6 Connect Wires
Simply match wire labels.
If labels do not match letters on the thermostat, check “Alternate Wiring” on
page 6 and connect to terminal as shown here (see notes, below).
Thermostat does not work on Heat Pumps with auxiliary/backup heat.
We are here to help. Call 18004681502 for wiring assistance.
W/
Aux
Not
Used
M32714
Remove metal
jumper if you
have both
R and
Rc wires.
M32732
SCREW
INSERT WIRES
AND TIGHTEN
SCREWS
WIRE
HOLE
LABELED
WIRES
W
G
R
Not
Used
W
Y
