Honeywell Home RTH2300 Series User Manual

6

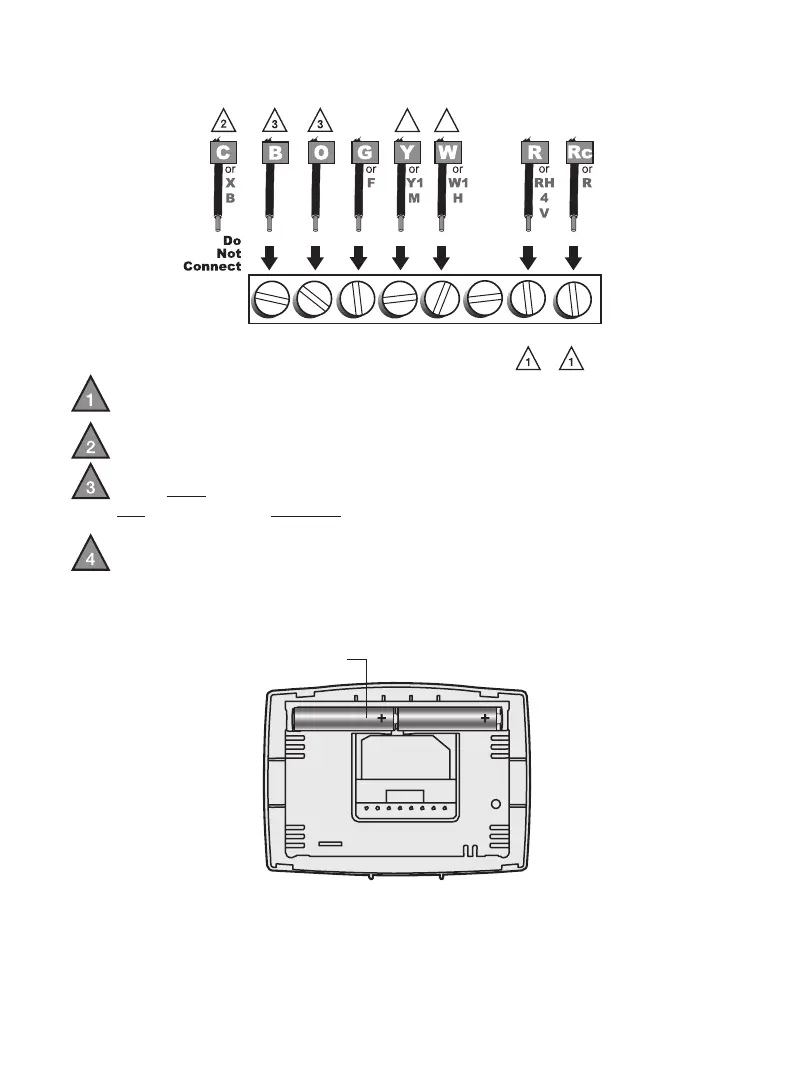

Alternate Wiring
If wires will be connected to both R and Rc terminals, remove metal
jumper.
Do not use C or X. Wrap bare end of wire with electrical tape.
If you have a heat pump without auxiliary/backup heat connect O or B,
not both. If you do not have a heat pump, do not connect B. Wrap bare
end of wire with electrical tape.
Place a jumper (piece of wire) between Y and W if you are using a heat
pump without auxiliary/backup heat.
B O G Y
W
NOT
USED
R Rc
M32734
44
7 Install Batteries
Install two AAA alkaline batteries.
Back of thermostat
RTHXXXX
M32707

Honeywell Home RTH2300 Series Specifications

General

Display Type	Digital
Power Source	Battery (2 AA)
Stages	1 Heat/1 Cool
Temperature Range	40°F to 90°F (4°C to 32°C)
Hold Feature	Yes
Filter Change Alert	No
Programmable	Yes
Temperature Control	Precise Temperature Control (+/- 1 degree F)
Weight	0.5 lbs
Compatibility	Single Stage Systems (Heat & Cool)
