Honeywell Home RTH2300 Series User Manual

7

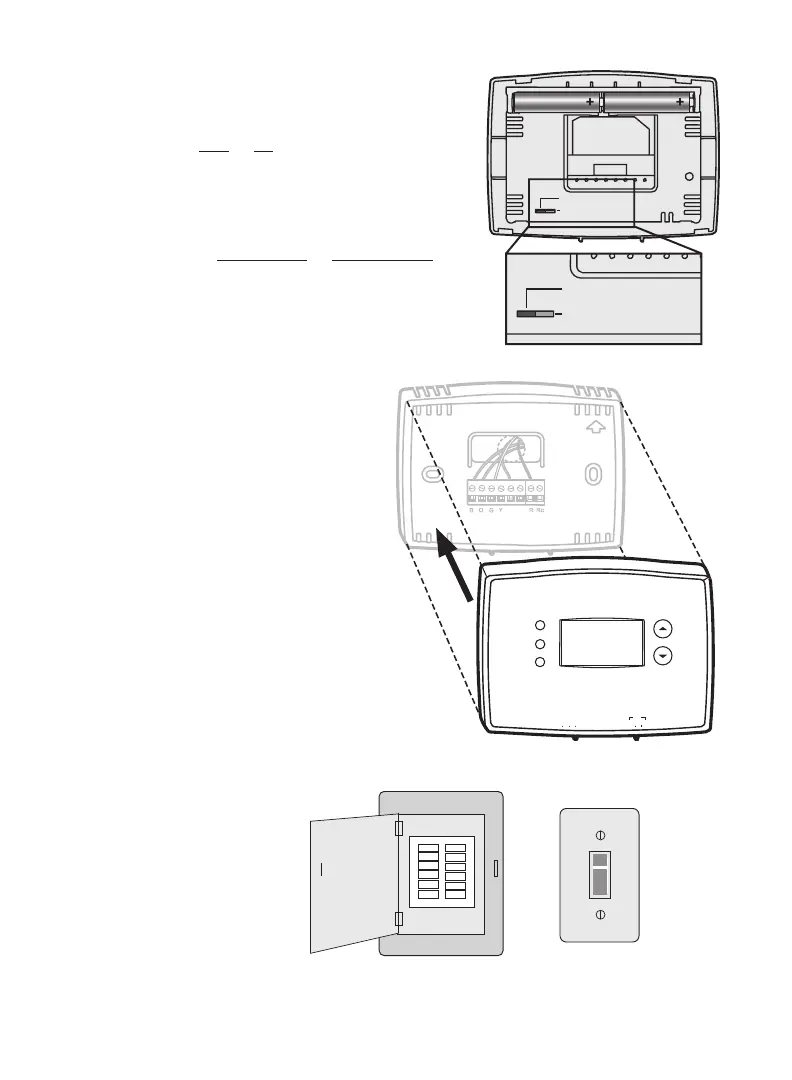

8 Set fan operation switch
Move the switch to the proper setting:
Gas or Oil: For gas or oil heating systems, leave
the fan operation switch in this factory-set
position (for systems that control the fan in a
call for heat).
Electric or Heat Pump: Change the switch
to this setting for heat pump or electric heat
systems. (This setting is for systems that allow
the thermostat to control the fan in a call
for heat, if a fan wire is connected to the G
terminal.)
9 Install Thermostat
onto Wallplate
Install thermostat onto the wallplate
on the wall.
RTHXXXX
M32716
GAS OR OIL
ELECTRIC OR HEAT PUMP
GAS OR OIL
ELECTRIC OR HEAT PUMP
10 Turn Power Back On
W
Not
Used
UP
Heat Off Cool Auto On
Fan
M33784A
Heat Off Cool Auto On
Fan
Heat O Cool
Auto On
Fan
Set
Hold
Run
M31544
or
Circuit breaker box Heating/cooling system
power switch
Turn the power back on
to the heating/cooling
system.

Honeywell Home RTH2300 Series Specifications

General

Display Type	Digital
Power Source	Battery (2 AA)
Stages	1 Heat/1 Cool
Temperature Range	40°F to 90°F (4°C to 32°C)
Hold Feature	Yes
Filter Change Alert	No
Programmable	Yes
Temperature Control	Precise Temperature Control (+/- 1 degree F)
Weight	0.5 lbs
Compatibility	Single Stage Systems (Heat & Cool)
