Honeywell Home T5 Smart User Manual

10 11

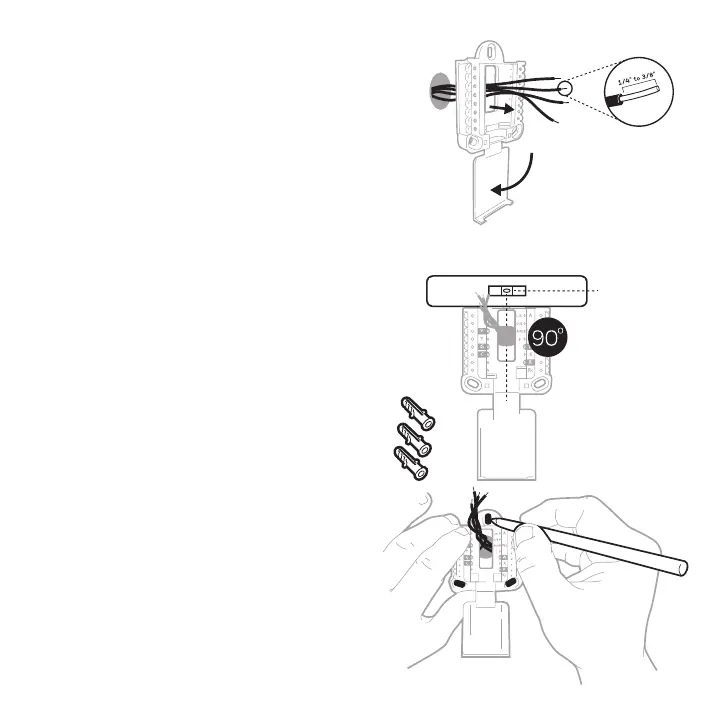

11 Insert the wall anchors
It is recommended that you use the
wall anchors included in the box to
mount your thermostat.
You can use the UWP to mark where
you want to place the wall anchors.
a) Level the wall plate.
b) Mark the location of the wall
anchors using a pencil.
c) Drill the holes.
d) Insert wall anchors.
e) Make sure anchors are flush with
wall.
Tip: Use a 7/32 (5.6 mm) drill bit.
10 Bundle and insert wires through
the UWP
Pull open the UWP and insert the
bundle of wires through the back of
the UWP.
Make sure at least 1/4-inch
(6.4 mm) of each wire is exposed for
easy insertion into the wire terminals.

Honeywell Home T5 Smart Specifications

General

Scheduling	7-day programmable, flexible scheduling options
Geofencing	Yes
Remote Control	Yes, via Honeywell Home app
Warranty	1-year limited warranty
Compatibility	Works with most 24V HVAC systems
Connectivity	Wi-Fi (2.4 GHz)
Control	Touchscreen
Voice Assistants	Amazon Alexa, Google Assistant
Display	Touchscreen
Power Source	C-wire required
Features	Smart alerts, adaptive intelligent recovery
Operating Modes	Heat, Cool, Auto, Off
Energy Saving	Energy Star certified, Adaptive Recovery, Usage Reports
