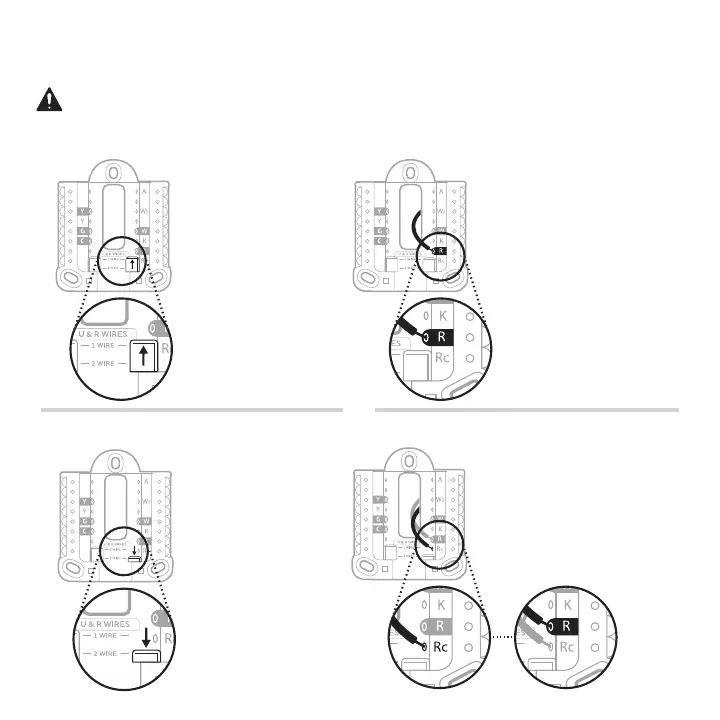

12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2. Insert your R-wire
(R, Rh or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into RTerminal.

Honeywell Home T5 Smart Specifications

General

Scheduling	7-day programmable, flexible scheduling options
Geofencing	Yes
Remote Control	Yes, via Honeywell Home app
Warranty	1-year limited warranty
Compatibility	Works with most 24V HVAC systems
Connectivity	Wi-Fi (2.4 GHz)
Control	Touchscreen
Voice Assistants	Amazon Alexa, Google Assistant
Display	Touchscreen
Power Source	C-wire required
Features	Smart alerts, adaptive intelligent recovery
Operating Modes	Heat, Cool, Auto, Off
Energy Saving	Energy Star certified, Adaptive Recovery, Usage Reports
