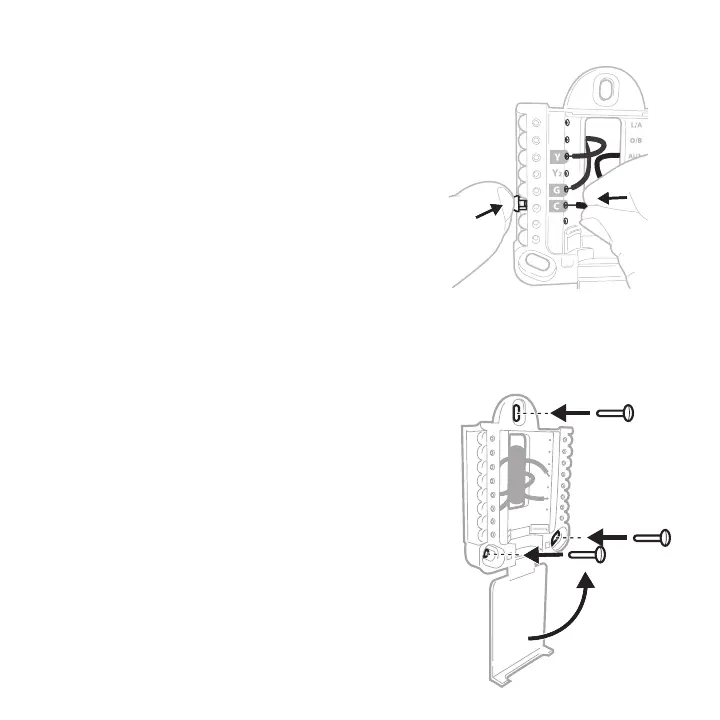

13 Connect remaining wires from Step 8
Tip: Do not mount the UWP to the wall
prior to connecting the wires.
Depress the tabs to put the wires into
the inner holes of their corresponding
terminals on the UWP (one wire per ter-
minal) until it is firmly
in place.
Gently tug on the wires to verify they
are secure.
Tip: If you need to release the wires
again, push down the terminal tabs on
the sides of the UWP.
14 Mount the UWP and close the door
Mount the UWP using the provided
screws. Install all three screws for a
secure fit on your wall. Close the door
after you’re finished.
This wiring is just an example,
actual wiring may vary.
Use 3x
supplied
screws
#8 11/2”
(38.1 mm)
1/4” to 3/8”

Honeywell Home T5 Smart Specifications

General

Scheduling	7-day programmable, flexible scheduling options
Geofencing	Yes
Remote Control	Yes, via Honeywell Home app
Warranty	1-year limited warranty
Compatibility	Works with most 24V HVAC systems
Connectivity	Wi-Fi (2.4 GHz)
Control	Touchscreen
Voice Assistants	Amazon Alexa, Google Assistant
Display	Touchscreen
Power Source	C-wire required
Features	Smart alerts, adaptive intelligent recovery
Operating Modes	Heat, Cool, Auto, Off
Energy Saving	Energy Star certified, Adaptive Recovery, Usage Reports
