12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.

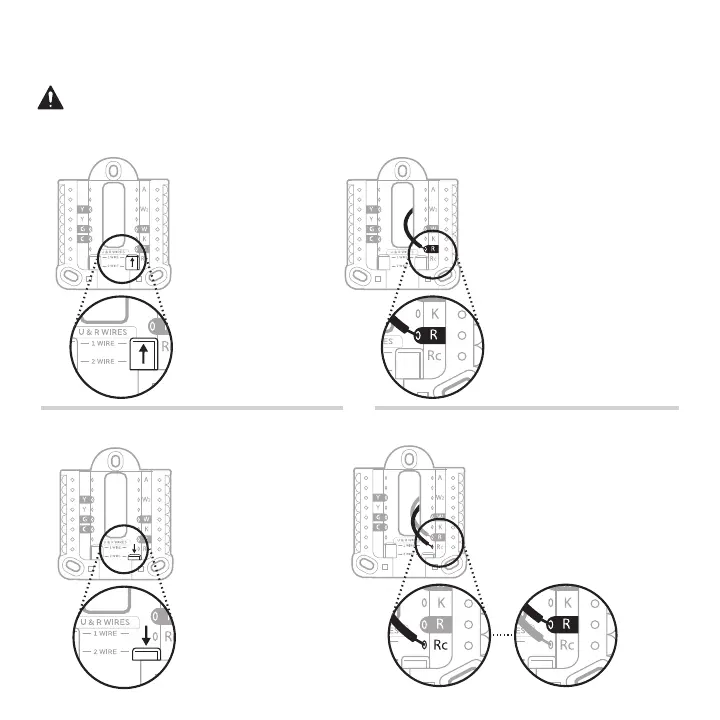

If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2. Insert your R-wire
(R, Rh or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into RTerminal.

Honeywell Home T5 Specifications

General

Connectivity	Wi-Fi
Display	Touchscreen
Scheduling	7-day flexible scheduling
Energy Saving	Yes
Programmability	Yes
Operating Modes	Heat, Cool, Auto, Off
Remote Control	Yes, via Honeywell Home App
Color	White
Compatibility	Works with most HVAC systems including gas, oil, electric, and heat pump systems
Type	Programmable
Features	Geofencing, Auto Changeover
Voice Control	Amazon Alexa, Google Assistant
Dimensions	4.06 x 4.06 x 1.06 inches
Power Source	C-Wire (Common Wire) Required
Stages	1 or 2 heating and cooling stages
