Honeywell Home T5 User Manual

12 13

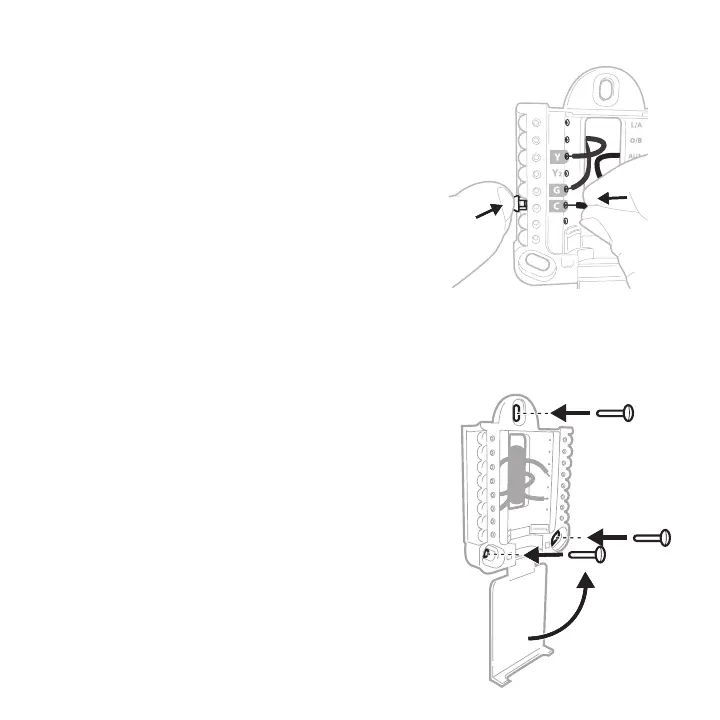

13 Connect remaining wires from Step 8
Tip: Do not mount the UWP to the wall
prior to connecting the wires.
Depress the tabs to put the wires into the
inner holes of their corresponding termi-
nals on the UWP (one wire per terminal)
until it is firmly in place.
Gently tug on the wires to verify they
are secure.
Tip: If you need to release the wires
again, push down the terminal tabs on
the sides of the UWP.
14 Mount the UWP and close the door
Mount the UWP using the provided
screws. Install all three screws for a
secure fit on your wall. Close the door
after you’re finished.
This wiring is just an example,
actual wiring may vary.
Use 3x
supplied
screws #8
11/2”
1/4” to 3/8”
