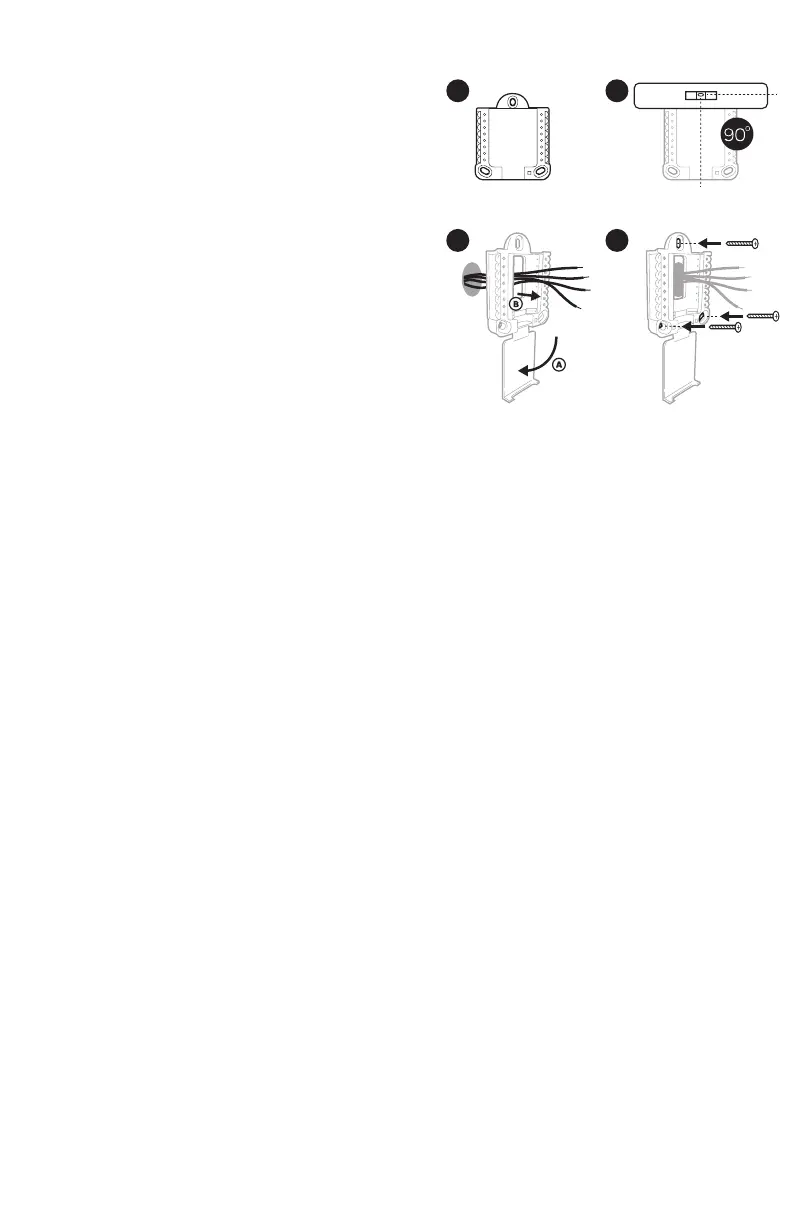

UWP Mounting System installation
1. Open package to find the UWP.
See Figure 1.
2. Position the UWP on the wall. Level and
mark hole positions. See Figure 2.
Drill holes at marked positions, and then
lightly tap supplied wall anchors into wall
using a hammer.
If your box contains red anchors, drill
7/32” (5.6 mm) holes for drywall.
If your box contains yellow anchors, drill
3/16” (4.8 mm) holes for drywall.
3. Pull the door open and insert wires
through wiring hole of the UWP. See
Figure 3.
4. Place the UWP over the wall anchors.
Insert and tighten mounting screws supplied with
the UWP. Do not overtighten. Tighten until the UWP
no longer moves. Close the door. See Figure 4.
1
2
3
4
Use 3x supplied screws
(#8 11/2" [38 mm] for
red anchors and #6 11/2
[38 mm] for yellow anchors)
1
2
3 4
1 2
3
4
