Honeywell 2000 Series Installation Instructions

C7031G; C7041B,C,F; T775-SENS-OAT SERIES 2000 ELECTRONIC TEMPERATURE SENSORS
Automation and Control Solutions
Honeywell International Inc. Honeywell Limited-Honeywell Limitée
1985 Douglas Drive North 35 Dynamic Drive
Golden Valley, MN 55422 Toronto, Ontario M1V 4Z9
customer.honeywell.com
® U.S. Registered Trademark
© 2007 Honeywell International Inc.
62-0220—01 C.H. Rev. 06-07
Strap-on Mounting (C7041K)
The C7041K Sensor mounts on metal pipes from
1-5/8 inch to five inches in diameter using the straps
supplied. Clean the pipe surface where the sensor makes
contact before mounting. If necessary, remove pipe
insulation at the installation point. Thermal compound is
recommended. Locate the sensor on the discharge pipe
within 3 feet (0.9m) of the boiler. See Fig. 6.
NOTE: Insulation around the contact area increases
sensor accuracy.

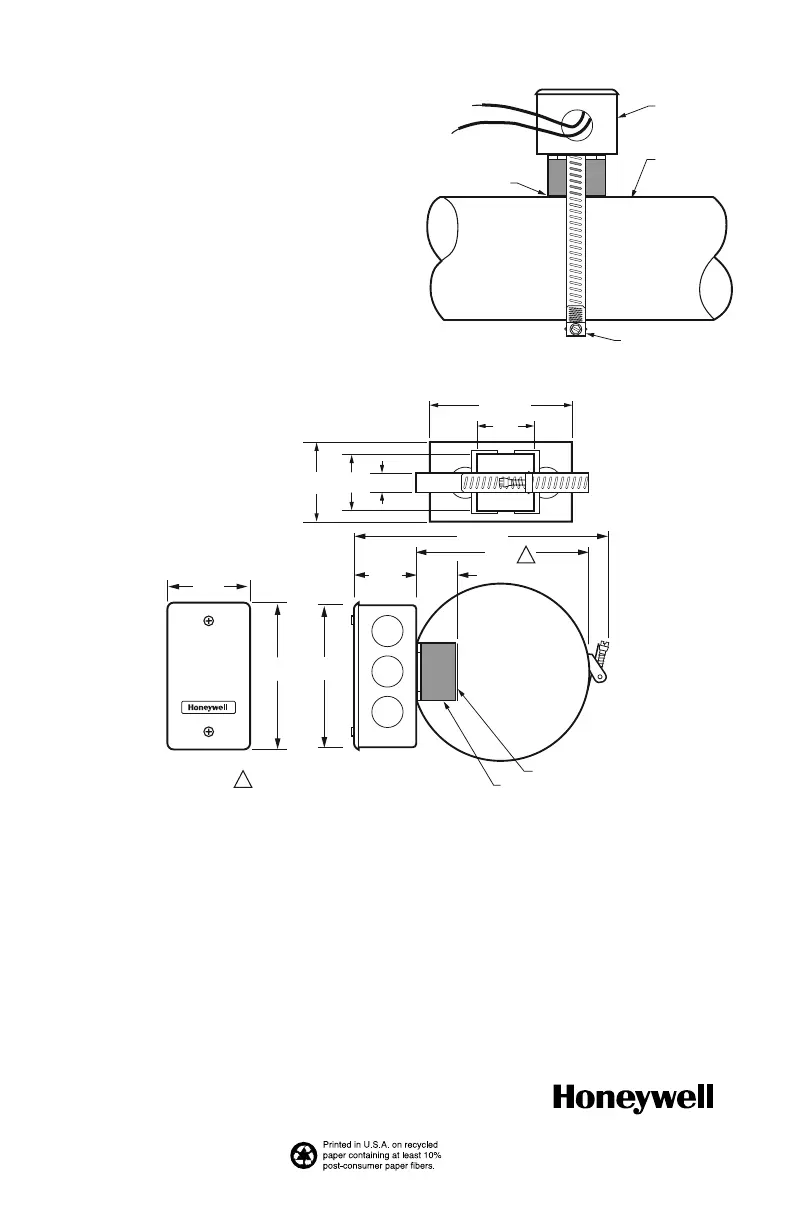

Fig. 6. Strap-on mounting of C7041K Sensor.
Fig. 7. C7041K dimensions in in. (mm).
M22136
SENSOR
PIPE
COPPER PLATE MUST
MAKE GOOD CONTACT
WITH METAL PIPE
WORM GEAR
2-5/16
(59)
4-3/16
(107)
4
(70)
1-11/16
(43)
7-1/8 (182)
9/16 (14)
1-1/2
(38)
1-1/2
(38)
2-5/16
(59)
M22134
1-1/4
(32)
5 (127)
MAXIMUM PIPE DIAMETER SHOWN.
MINIMUM PIPE DIAMETER: 1-5/8 (41)
1
1
4-3/16 (107)
COPPER PLATE
FOAM PAD
62-0220-1.fm Page 4 Monday, June 11, 2007 8:47 AM

Honeywell 2000 Series Specifications

General

Control Type	On/Off, PID
Input Type	Thermocouple, RTD
Output Type	Relay
Supply Voltage	24 VAC/VDC, 100-240 VAC
Display	LED
Mounting	Panel
Communication	RS-485 (Optional)
Operating Temperature	-10 to 50 °C
