Honeywell 800 Series

HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
33 66-2069EP—08

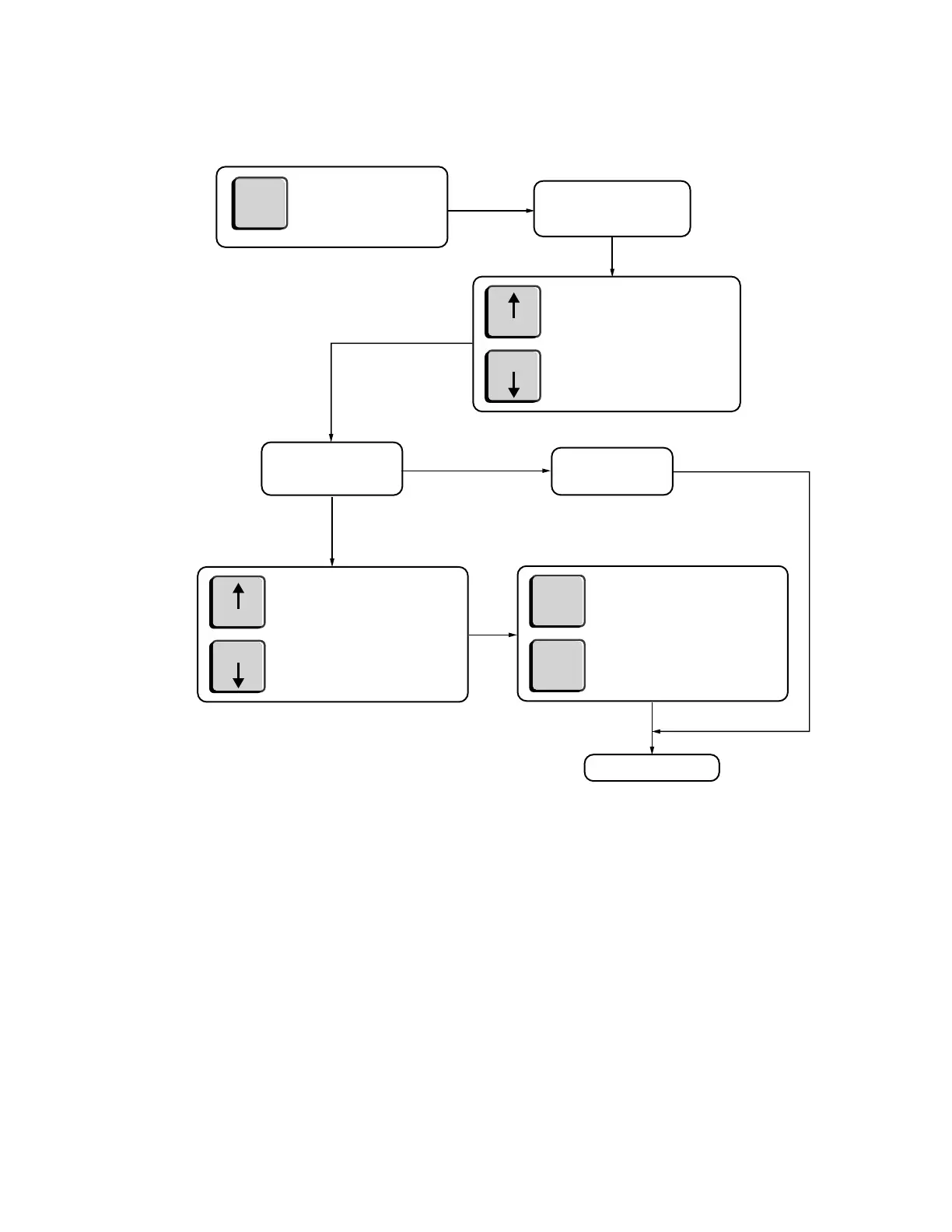

Fig. 25. Flow Chart 7: Flame Failure Response Time (FFRT) Setup.
IS THE PANEL LOCKED?
FFRT
1/2/3 SEC
OPTION
PRESS, FFRT,
FOR 2 SECONDS
2 SECS
DISPLAY SHOWS CURRENT
SETTING IN SECONDS
DISPLAY SHOWS ‘PL’,
UNTIL KEY RELEASED
NORMAL OPERATION
N
SETTING FLAME FAILURE RESPONSE
TIME (FFRT)
Y
M34463A
USE INCREASE OR DECREASE KEYS
TO ADJUST SETTING
INCREASE
DECREASE
USE INCREASE OR DECREASE KEYS
TO ADJUST SETTING
INCREASE
DECREASE
PRESS RESET OR WAIT 4 SECONDS
TO RESTORE OLD SETTING
OR
PRESS STORE TO SAVE
THE NEW SETTING
STORE
RESET
rE
