HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
66-2069EP—08 32

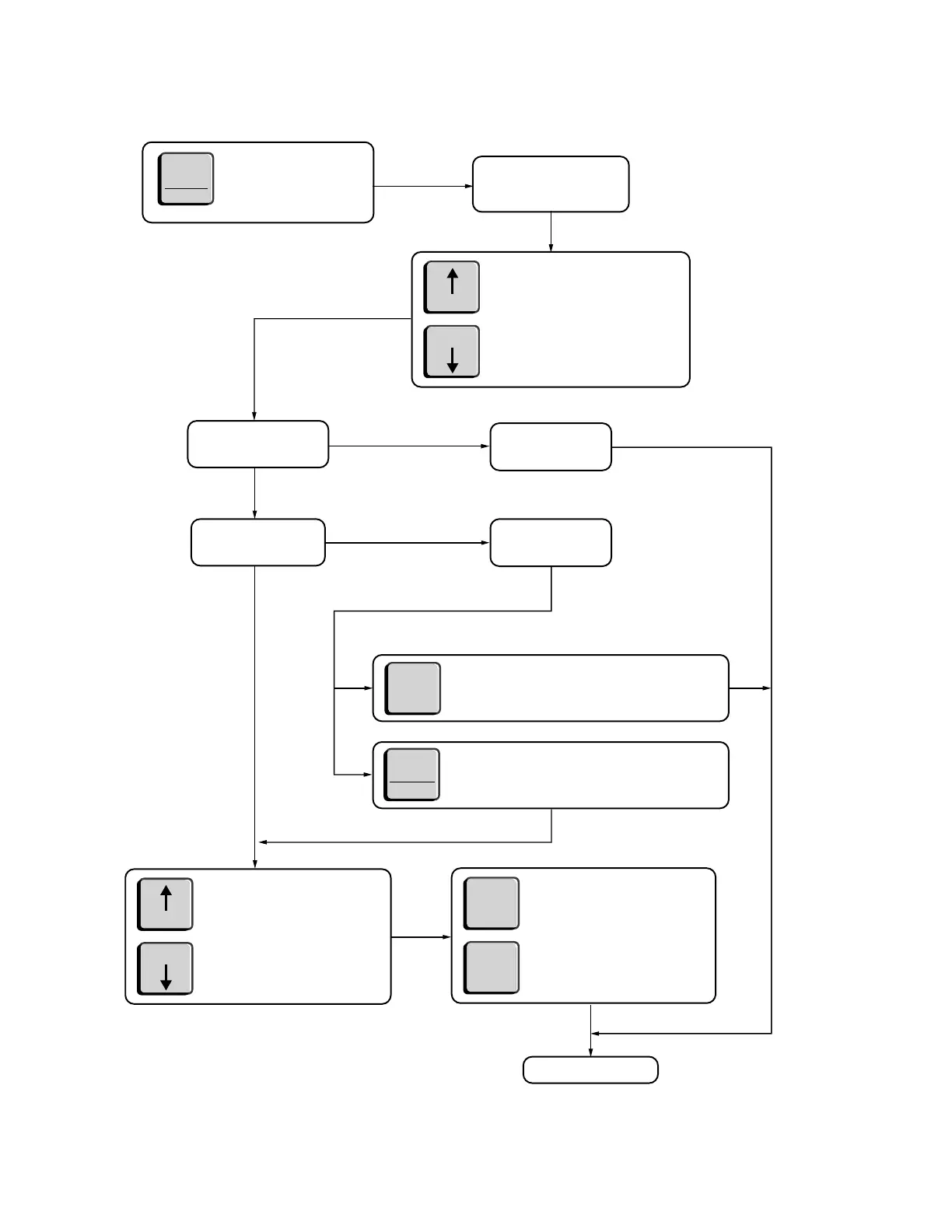

Fig. 24. Flow Chart 6: Manual Flame Off Setup.
IS THE PANEL LOCKED?
IS THE AUTO SET
LIGHT LIT?
DISPLAY SHOWS CURRENT
RATIO SETTING IN PERCENT
DISPLAY SHOWS ‘CF’,
MEANING CONFIRM
DISPLAY SHOWS ‘PL’,
UNTIL KEY RELEASED
NORMAL OPERATION
N
SETTING RATIO PERCENTAGE
Y
N
Y
OR
M34462A
PRESS RESET OR WAIT 4 SECONDS TO CANCEL
CHANGING THE AUTO RATIO
RESET
rE
USE INCREASE OR DECREASE KEYS
TO ADJUST SETTING
INCREASE
DECREASE
USE INCREASE OR DECREASE KEYS
TO ADJUST SETTING
INCREASE
DECREASE
PRESS RESET OR WAIT 4 SECONDS
TO RESTORE OLD SETTING
OR
PRESS STORE TO SAVE THE NEW
SETTING
STORE
RESET
rE
RATIO (%)
RATIO OFF
RATIO ON
PRESS, RATIO (%),
FOR 2 SECONDS
2 SECS
PRESS RATIO (%) AGAIN TO CONFIRM YOU
WANT TO CHANGE THE AUTO SETTING
RATIO (%)
RATIO OFF
RATIO ON
