HONEYWELL MODEL 700/800 SIGNAL PROCESSOR AND VIEWING HEAD
66-2069EP—08 6

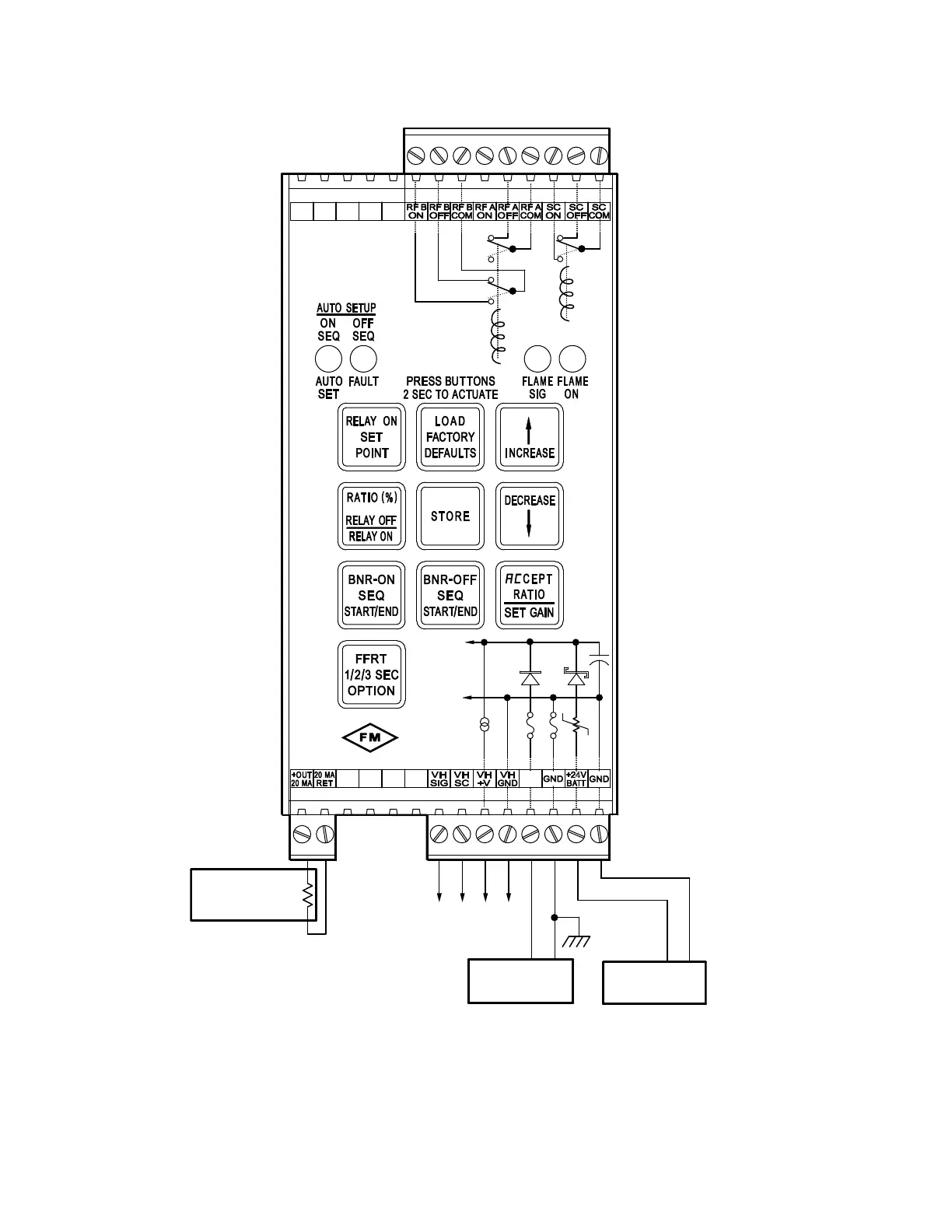

Fig. 2. Model 700DCSP Signal Processor Wiring.
+
+26VDC
GND
.4A1A 1A
.125 A
LIM
M34282A
APPROVED
24 V
BACKUP BATTERY
(OPTIONAL)
+
-
0-20 OR 4-20 MA
FOR INDICATOR OR
INSTRUMENTATION
360 OHMS MAX
+
-
CHASSIS,
EARTH, OR
SYSTEM GND
DC POWER SUPPLY
250 MA
+
-
+26
PWR
TO VIEWING
HEAD
