Honeywell CENTRA LINE MERLIN NX Series - Internal Wiring Examples; IP Model Internal Wiring; MSTP Model Internal Wiring

MERLIN NX IP AND MST/TP VAV CONTROLLER - INSTALLATION INSTRUCTIONS
EN1Z-1076GE51 R0722 16
Internal Wiring Examples

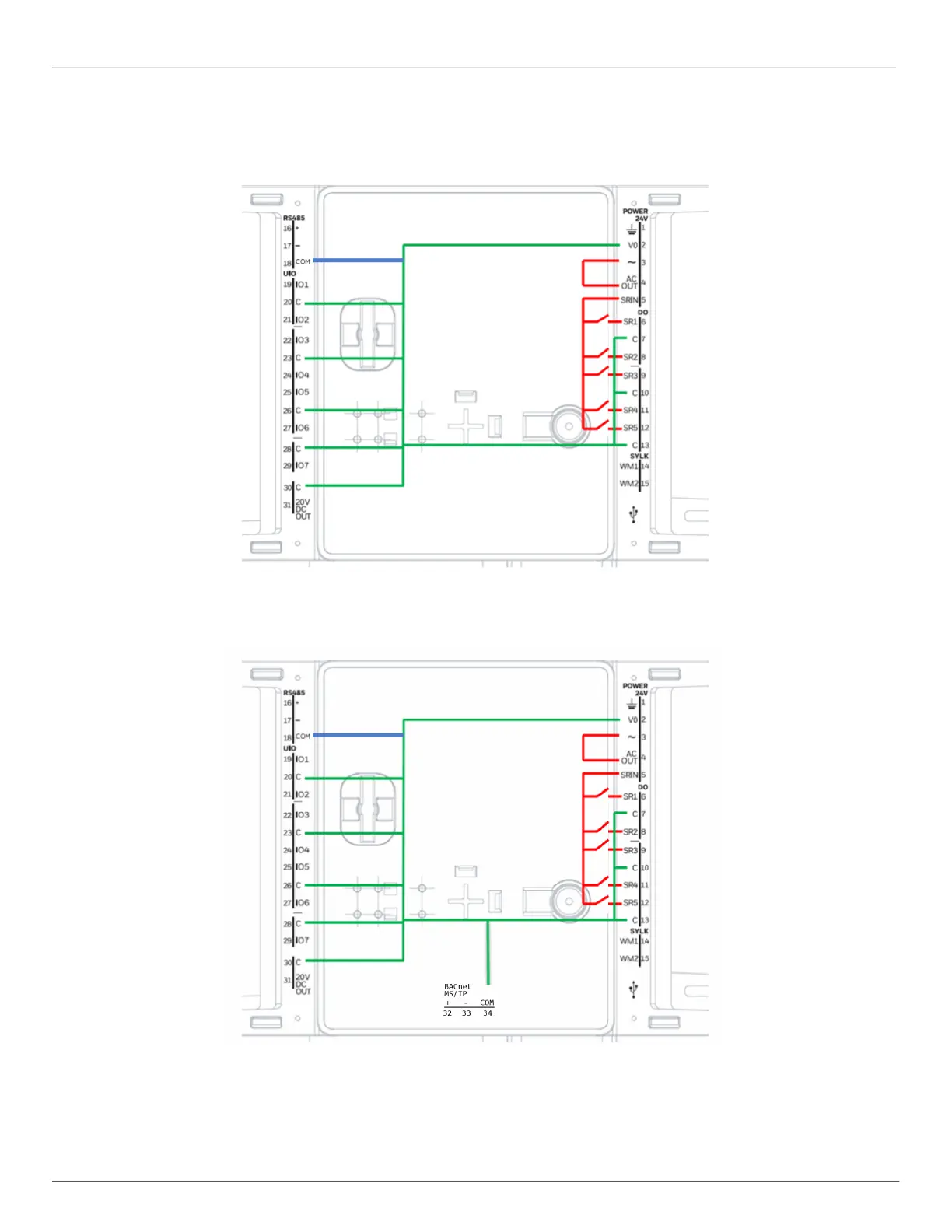

IP MODEL INTERNAL WIRING
Fig. 16. IP Model Internal Wiring
MSTP MODEL INTERNAL WIRING
Fig. 17. MSTP Model Internal Wiring
