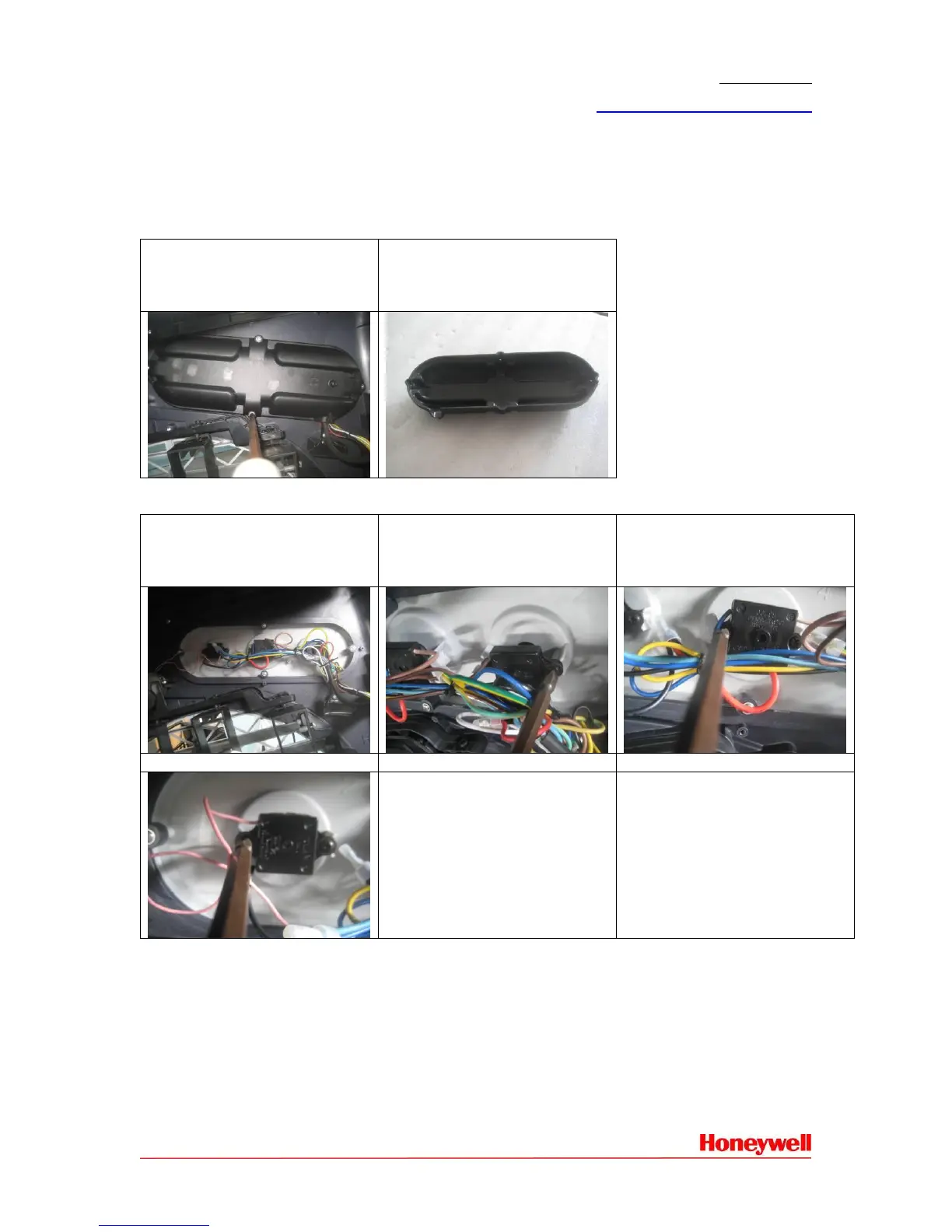

2.2 How To Change Switch
Remove the back panel follow the procedure 2.1.1
Remove the right side panel follow the procedure 2.1.3
2.2.1. Switch Box
Use screw driver to remove 4
galvanized screws with plate
head(ST3*12) on the switch
box.
Remove switch box.
2.2.2. Switch(cool/speed/swing)
Use screw driver to remove 2
galvanized screws (ST3X10)
on each switch of the control
panel(cool/speed/swing).
Cool switch
Speed switch
Swing switch
2.2.3. Wiring Color Connection
Wiring color connection refers to part 4.2 Wiring Color Description.

Honeywell CO60PM Specifications

General

Type	Monobloc mobile air conditioner
Noise level	- dB
Cooling capacity (max)	- BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	- W
Cooling energy efficiency (EER, W/W)	-
Product color	Grey, Taupe
Hourly energy consumption (cooling)	- kWh

Weight and Dimensions

Depth	466 mm
Width	700 mm
Height	1017 mm
Weight	17800 g
Package depth	502 mm
Package width	736 mm
Package height	1053 mm
Package weight	22000 g
