Honeywell CO60PM Service Manual

CONFIDENTIAL
Website: http://www.honeywellaircoolers.com
13
2.3 How To Change Water Pump
Remove the back panel follow the procedure 2.1.1
Remove the right side panel follow the procedure 2.1.3
Remove the switch box follow the procedure 2.2.1

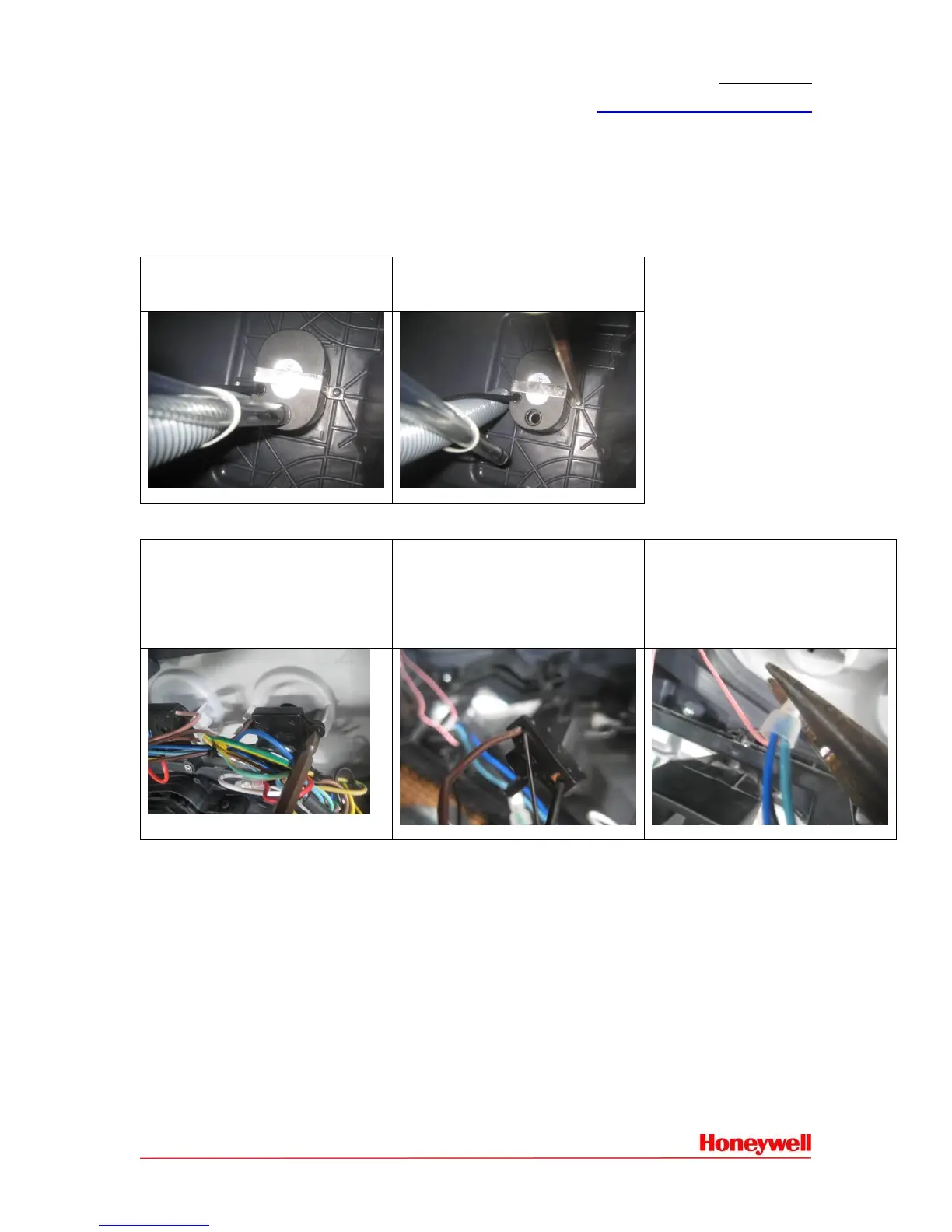

2.3.1 Water pump pipe and water pump clip.
Remove the water pump pipe.
Use screw driver to remove 2
SS screws(ST4*12) on the
water pump clip.
2.3.2 Cool Switch And Wiring Connector
Use screw driver to remove 2
galvanized screws (ST3X10) on
cool switch of the control
panel.
Remove the brown wire on the
cool switch.
Remove the wiring cap (below
picture shown) to get the water
pump.
Note: connection is between
water pump and N wire of
power cord.
2.3.3 Water Pump Wiring Connection
Water pump wiring connection refers to part 4.2 Wiring Color Description.
