2.5 How To Change Swing Motor
Remove the back panel follow the procedure 2.1.1
Remove the right side panel follow the procedure 2.1.3
Remove the switch box follow the procedure 2.2.1

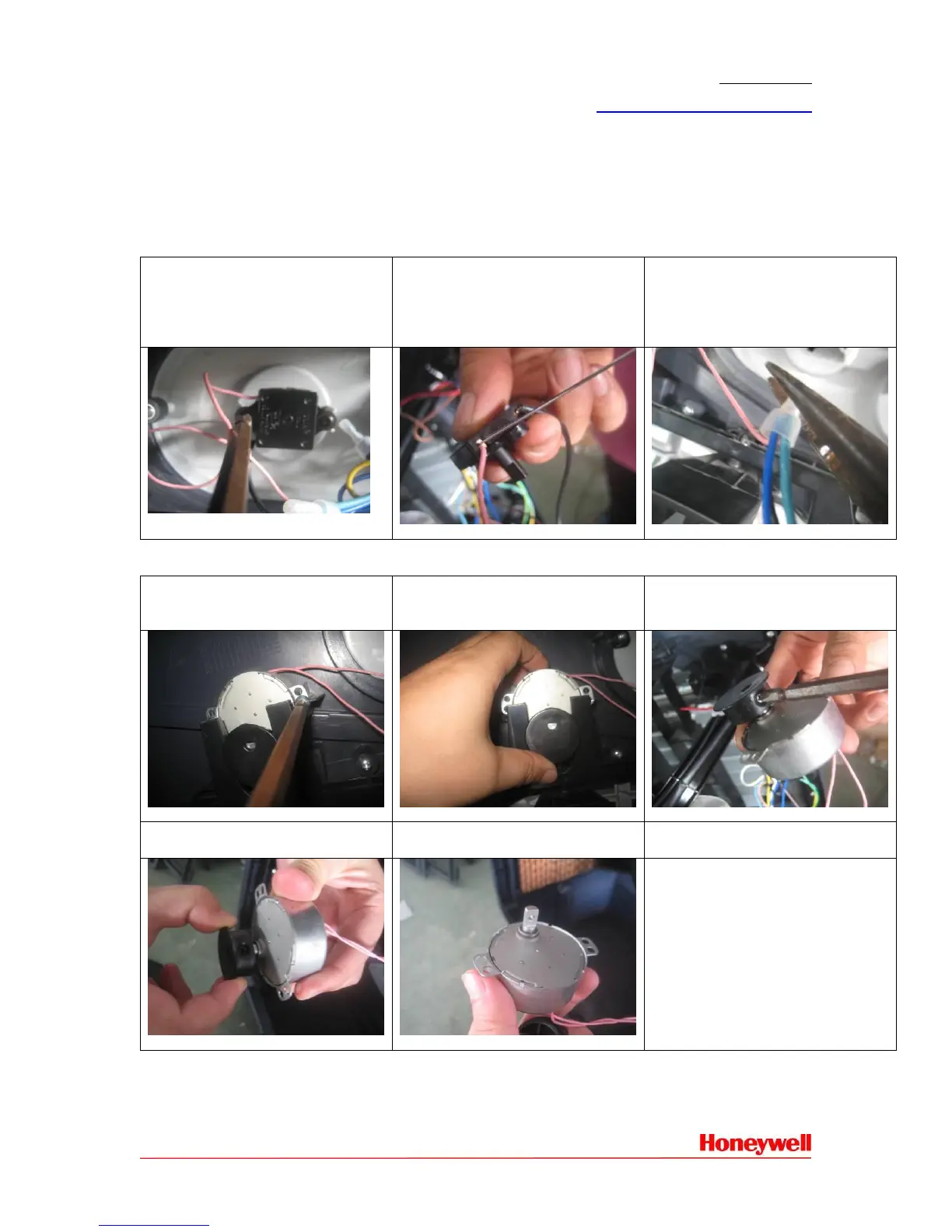

2.5.1 Swing Switch And Wiring Connector.
Use screw driver to remove 2
galvanized screws (ST3X10) on
swing switch of the control
panel.
Remove the pink wire on the
swing switch.
Remove the wiring cap (below
picture shown).
Note: connection is between
swing motor and N wire of
power cord.
2.5.2 Swing Motor And Swing Motor Wheel.
Use screw driver to remove 2
galvanized screws(ST4X12) on
swing motor.
Remove the swing motor.
Use screw driver to remove 1
galvanized screw(ST3*8) on the
swing motor wheel.
Remove the swing motor
wheel.
Get the swing motor.
2.5.3 Swing Motor Wiring Connection
Swing motor wiring connection refers to part 4.2 Wiring Color Description.

Honeywell CO60PM Specifications

General

Type	Monobloc mobile air conditioner
Noise level	- dB
Cooling capacity (max)	- BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	- W
Cooling energy efficiency (EER, W/W)	-
Product color	Grey, Taupe
Hourly energy consumption (cooling)	- kWh

Weight and Dimensions

Depth	466 mm
Width	700 mm
Height	1017 mm
Weight	17800 g
Package depth	502 mm
Package width	736 mm
Package height	1053 mm
Package weight	22000 g
