Honeywell DC1030 Instruction Manual

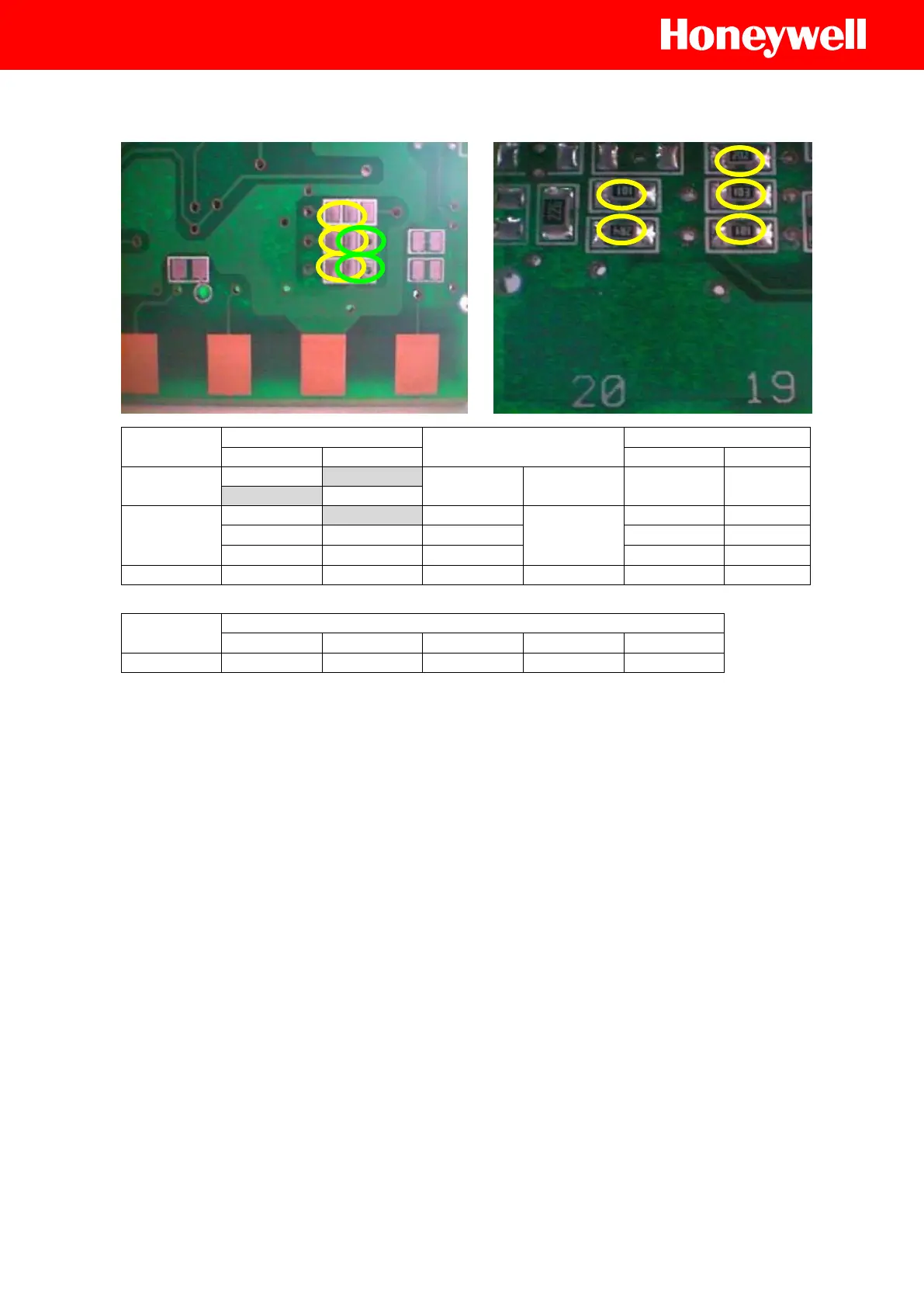

3) DC1020/1040
Input Type
Input Code
R1 to R5
S1 to S5
AN 4
AN 5
Jumper
Status
mA
0~20 mA
R3 = 100 
R5 = 2.4 
S3 & S5
Short
4~20 mA
V
0~1 V
R1 = 2 K
R4 = 100 
S1 & S4
Short
0~5 V
1~5 V
R2 = 10 K
S2 & S4
Short
0~10 V
2~10 V
R3 = 22 K
S3 & S4
Short
mV
0~100mV
20~100mV
-
-
S3 & S4
Short
Input Type
Input Code
AN 1
AN 2
AN 3
AN 4
AN 5
mV
-10~10mV
0~10mV
0~20mV
0~50mV
10~50mV
S1
S2
S3
S4
S5
R1
R2
R3
R4
R5
20
19
18
17
