Honeywell Dolphin 7800 User Manual

12 - 2
Convenient Storage
The intelligent battery charging system makes this base a safe and convenient storage receptacle for
your Dolphin terminal.
Capacity
The base holds one terminal and features an auxiliary battery well behind the terminal well that can
charge a battery pack independently of the terminal well. This means that one base can charge two bat-
tery packs: the one installed in the terminal and a spare.
We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in
damage not covered by the warranty.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
Parts and Functions
Front Panel
Terminal Well
Place the terminal in this well to communicate with a host device, power the terminal, and
charge the installed battery pack. The base completely charges the main battery in a Dolphin
terminal in 4 hours for the standard battery or 6 hours for the extended battery. If the host
device is a workstation that uses ActiveSync or Windows Device Mobile, synchronization
begins immediately.
Auxiliary Battery Well
See Auxiliary Battery Well on page 12-3.
Power/Dock LED
Indicates if power is supplied to the HomeBase and if a terminal is docked properly in the base.
This color means…
Red The HomeBase has power but no terminal is docked.
Green The HomeBase has power and the terminal is properly seated in the base.
!
!

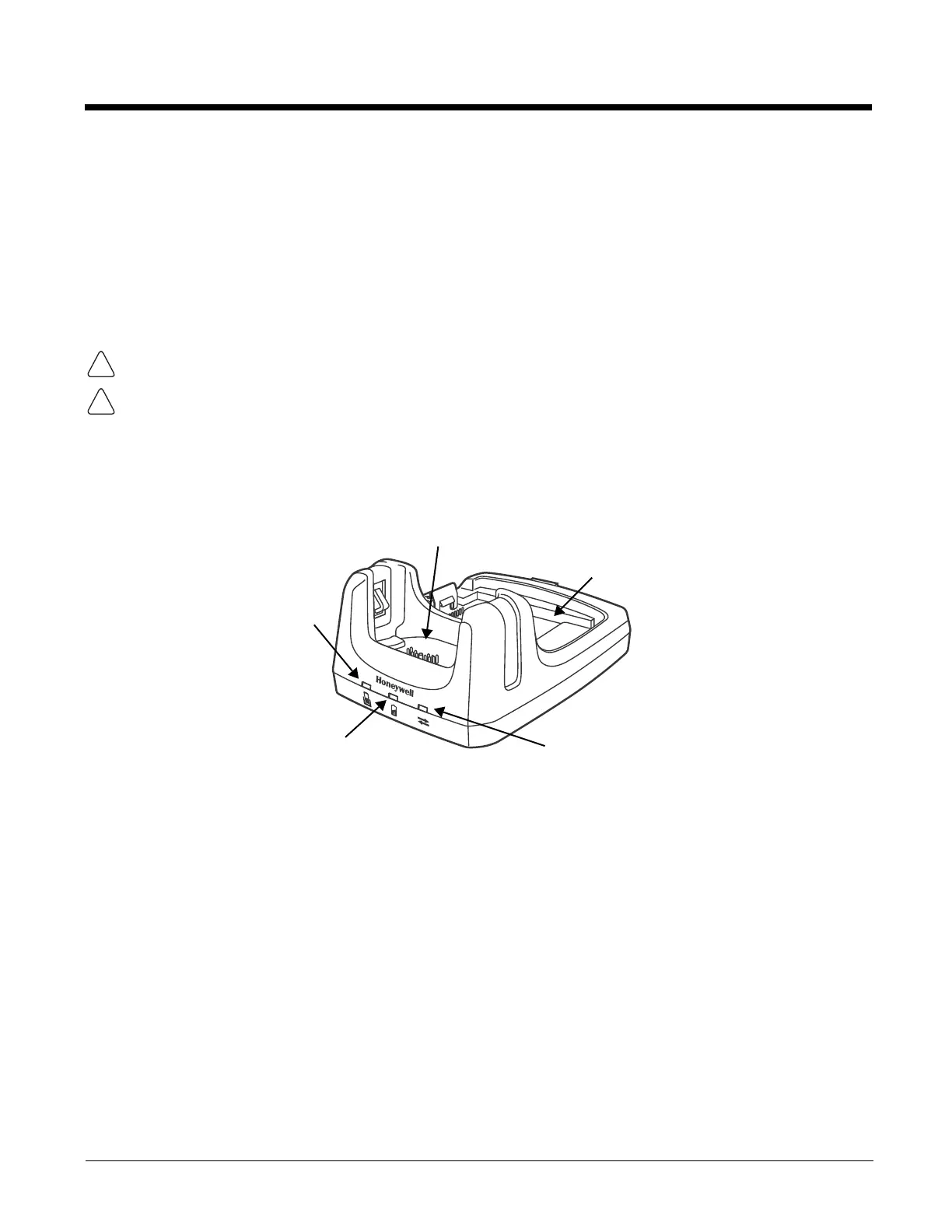

Power/Dock LED
Auxiliary Battery Well
AUX Battery LED
COMM LED
Terminal Well

Honeywell Dolphin 7800 Specifications

General

Product type	Battery
Product color	Black
Battery voltage	3.7 V
Battery capacity	- mAh
Number of batteries included	1 pc(s)
Device interface	-
Harmonized System (HS) code	84733020

Weight and Dimensions

Weight	- g
