Honeywell Dolphin 7800 User Manual

14 - 2

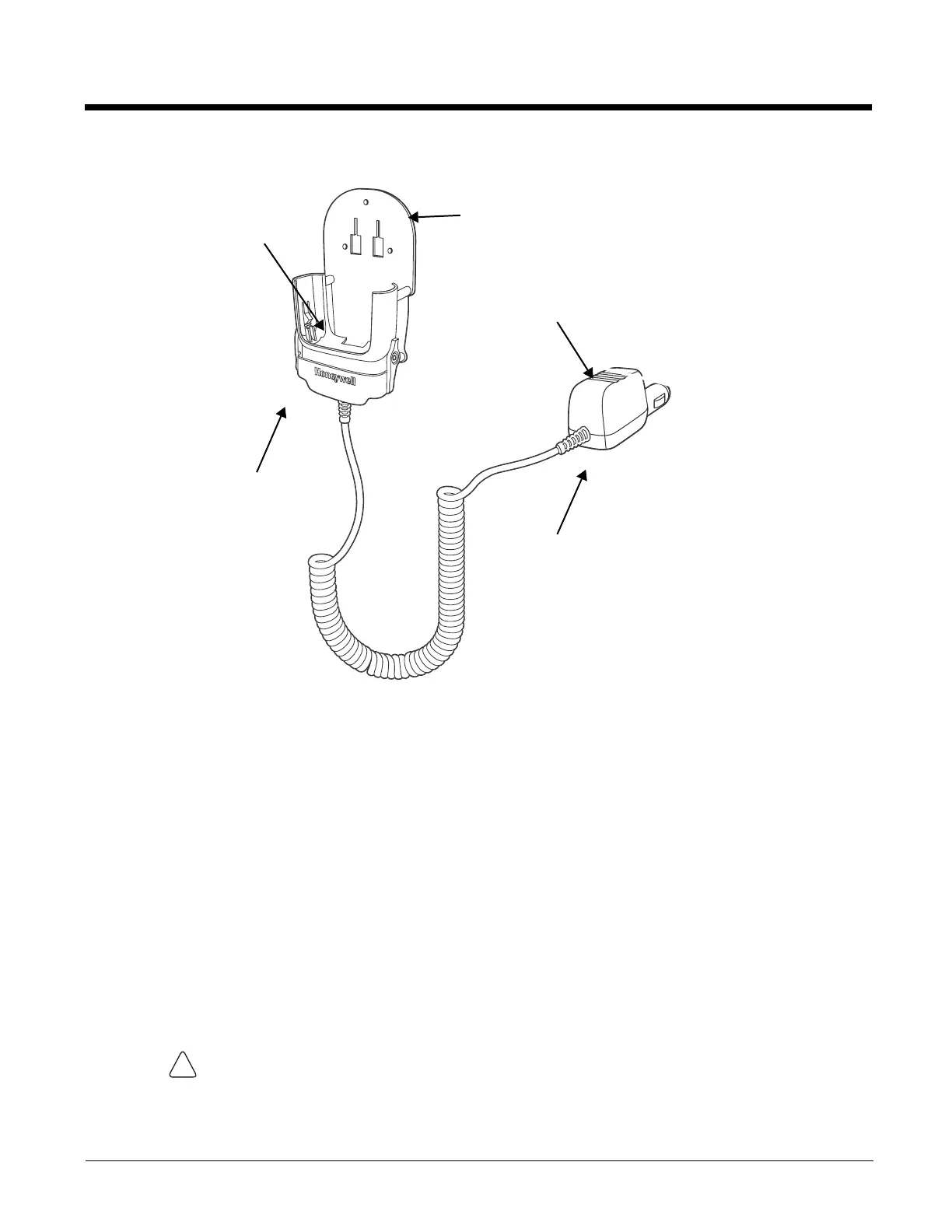

Mobile Base Components
Mounting Back Plate
Used to mount the base to a fixed location.
Terminal Locking Lever
The mobile base has a locking lever on the front. When the lever is in the down position the
terminal in locked in the base. To unlock the terminal push the lever up.
Terminal Well
Place the terminal in this well to charge the main battery pack.
Power Adapter
The mobile charger is equipped with a car adapter cable that can be connected to a vehicle
cigarette lighter outlet.
UL listed power supply
Input: 9V-24VDC, 3.2A
Output: 5VDC 3000mA
Verify that the power source is always within the specified range and observe correct
input voltage polarity. An improper input voltage range or reverse polarity could damage
the power conversion circuitry.
Terminal Well
Adapter Power LED
(not in view)
Power Adapter
Terminal Locking
Lever
Mounting Back Plate
!
