13

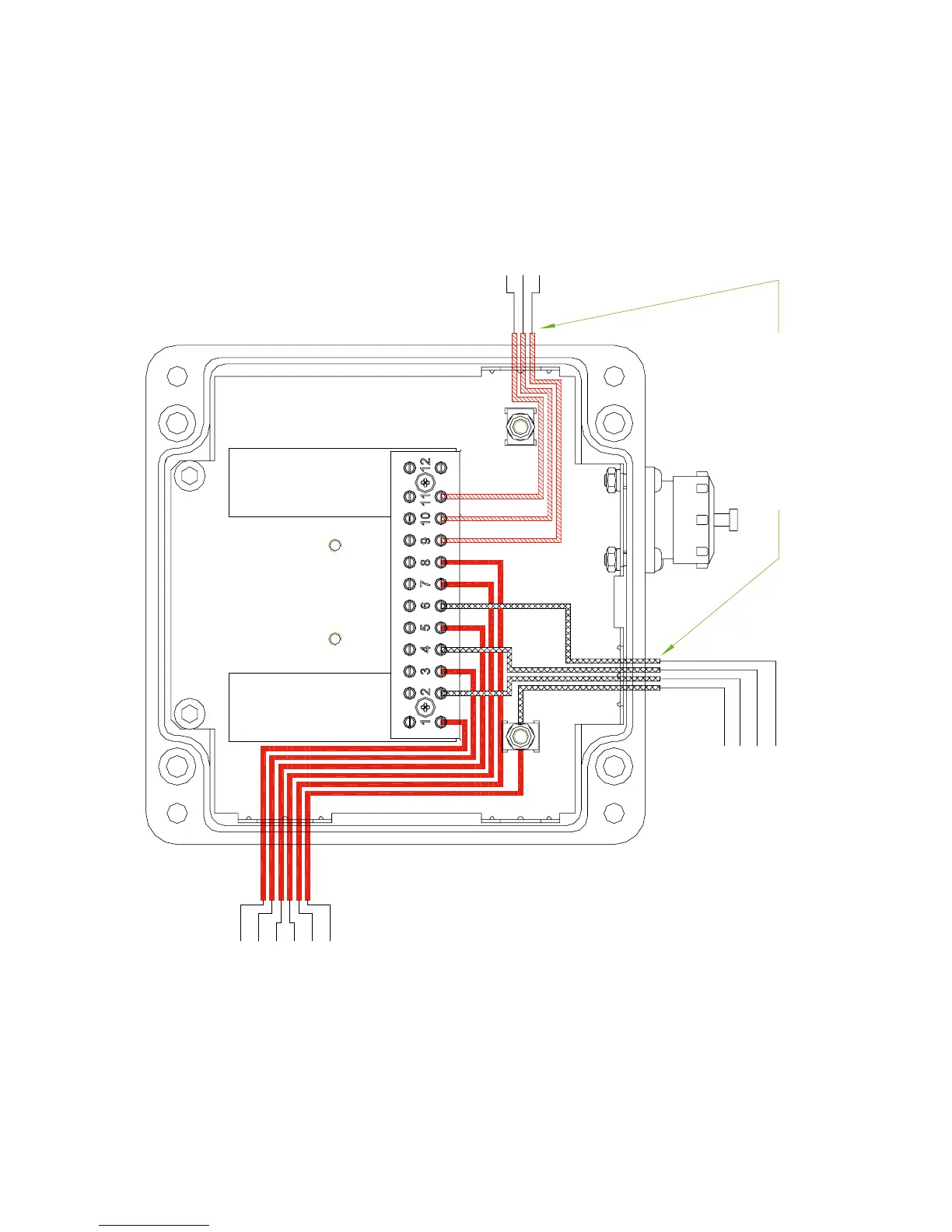

Optima Wiring
+24VDC (Red) Terminal 1
0V (Black) Terminal 3
4-20mA (White) Terminal 5
RS485 (A) (Orange) Terminal 7
RS485 (B) (Blue) Terminal 8
Earth Terminal (Green / Yellow)
Earth Terminal
+24VDC IN Terminal 2
0V Terminal 4
4-20mA OUT Terminal 6
Field Wiring
Note: Modbus wiring may
share field wiring entry
Modbus Wiring
Modbus B (Terminal 11)
Modbus A (Terminal 10)
Modbus Drain (Terminal 9)
