Honeywell DVC100 (M) MK2 User Manual

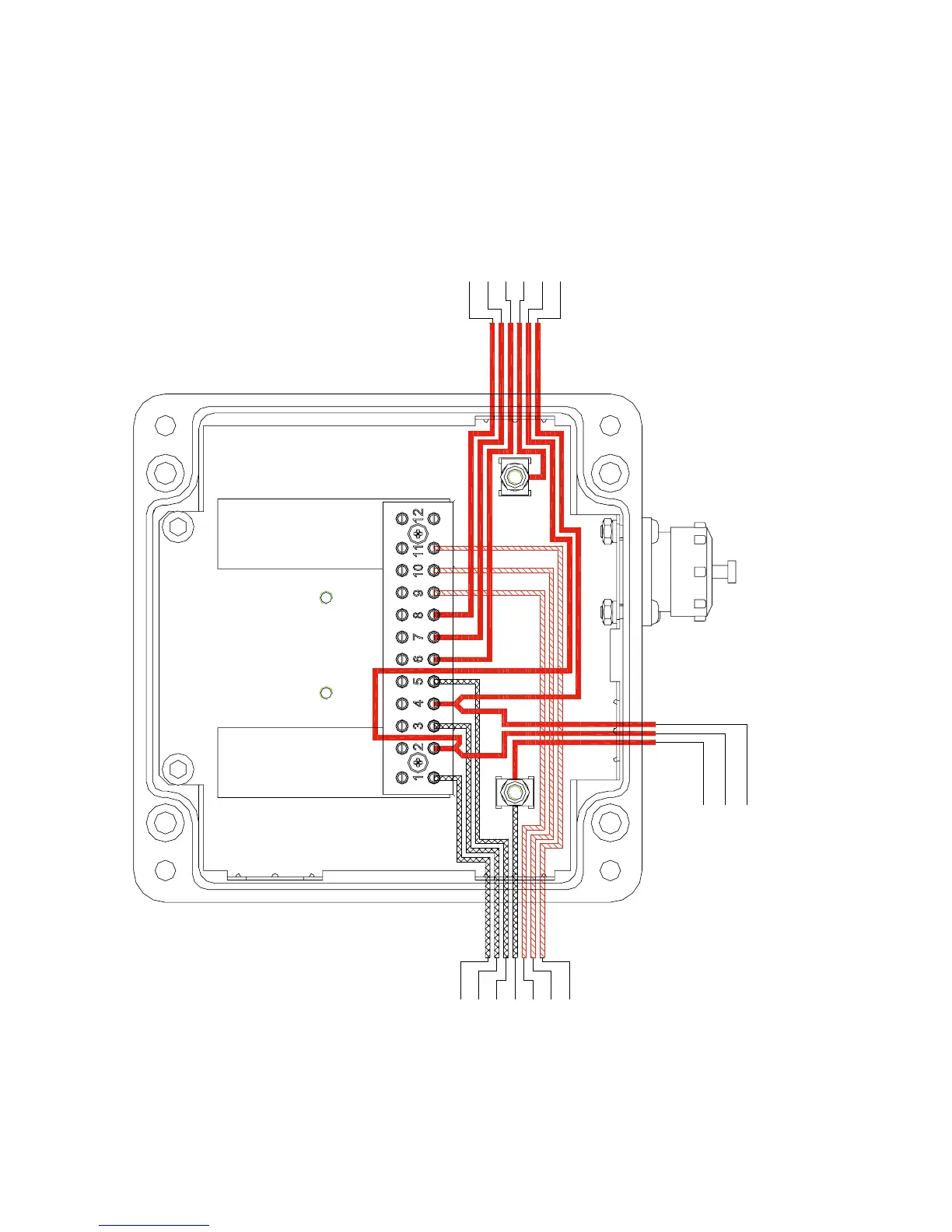

Field Wiring
+24VDC IN (Terminal 1)
0V (Terminal 3)
4-20mA (Terminal 5)
Earth Terminal
MOD BUS DRAIN (Terminal 9)
MOD BUS A (Terminal 10)
MOD BUS B (Terminal 11)
Earth Terminal
+24V (Terminal 2)
0V (Terminal 4)
Cross-Duct
Transmitter Wiring
Cross-Duct
Receiver Wiring
R5485 (B) (Blue) (Terminal 8) R5485 (A) (Orange) (Terminal 7) 4-20mA (White) (Terminal 6) Earth (Green / Yellow) (Earth Terminal) + 24VDC (Red) (Terminal 2) 0V (Black) (Terminal 4)
15
