33-00135EFS—05 2
About the ERM5220R

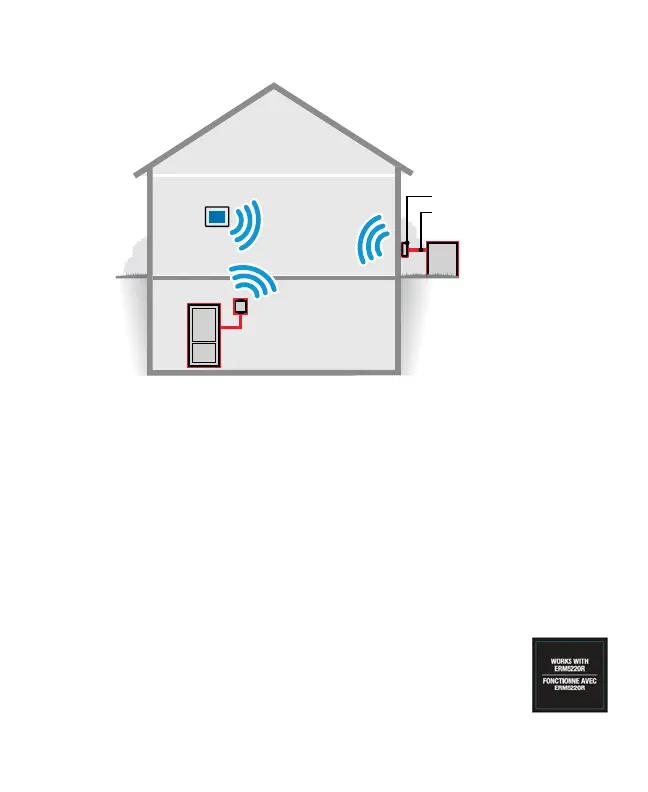

Fig. 1.
• Wireless RedLink™ communication between condensing unit/
compressor or boiler and thermostat.
• Eliminates the need to run additional wires to your equipment, for
example, during a heat pump upgrade.
• Suitable for outdoor use.
• Temperature sensor terminals for outdoor temp sensors or indoor
freeze protection.
• LEDs for easy installation checkout.
• May reduce damage to homes since wiring/drilling is eliminated.
NOTE: The ERM5220R must be used with updated
THX9421R5021, TH8321R1001 and/or EIM. Look
for this image on these products.
MCR35654
ERM
WIRE
CONDENSING
UNIT
THERMOSTAT
ERM
BOILER
