DISTRIBUTED I/O – PRODUCT DATA
EN0B-0090GE51 R0316 18
Manual Terminal Disconnect Module XSL512
 Mounts between terminal blocks and Distributed I/O
modules
 Manual terminal disconnect switches
 18 disconnect switches
 Dimensions (WxLxH): 58x97x55 mm
 Safety latch secures XFL module in its position
The XSL512 Manual Terminal Disconnect module allows
each of the terminal block's input connections to be manually
disconnected from the plugged-in module. This is particularly
useful for troubleshooting and installation.
Coding the Terminal Block
The terminal block is coded using the XAL-Code, (package of
20 combs).

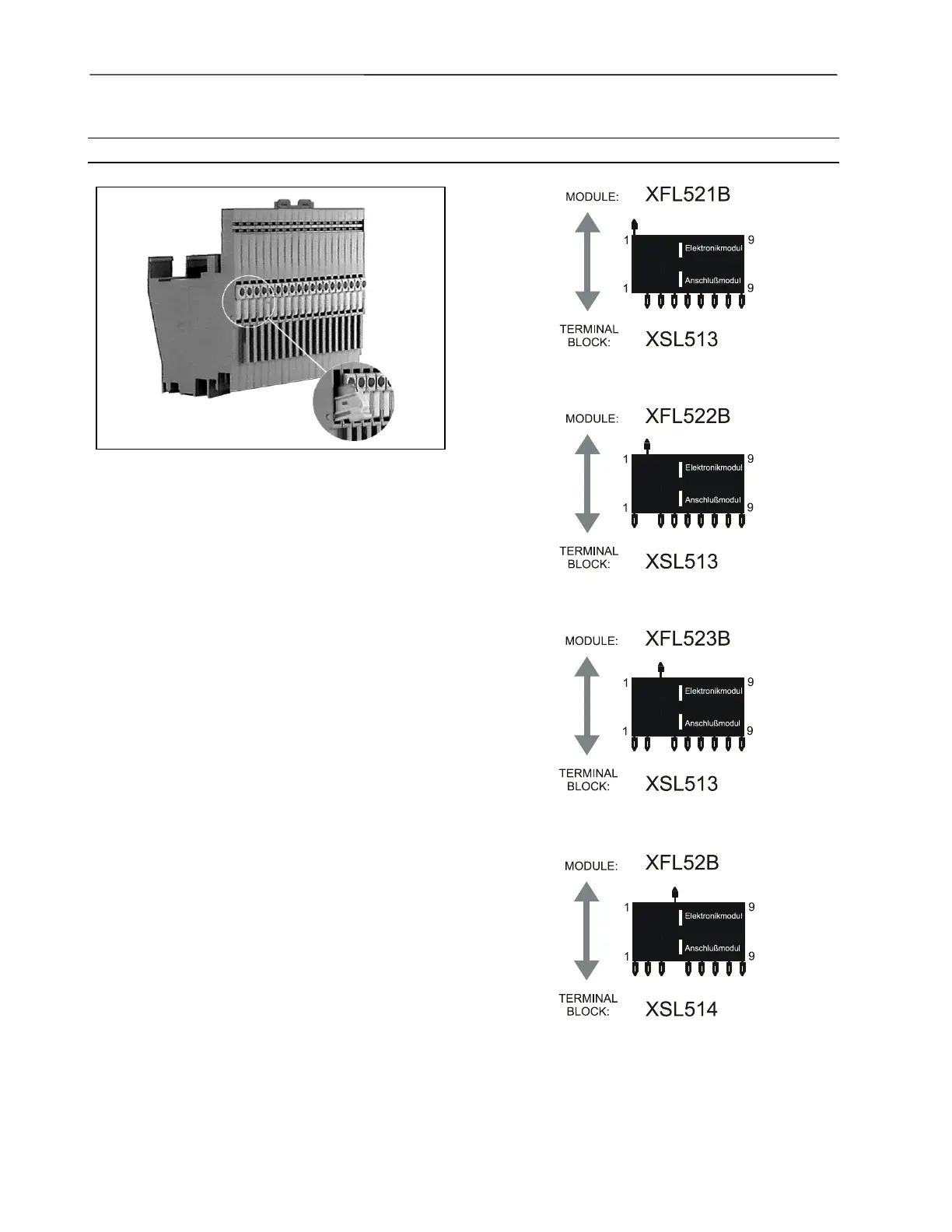

Fig. 21. Coding comb patterns
These pins prevent mixing the module types during
commissioning or servicing.
