Mounting the Cabinet Installation
5. Place the trim ring around the cabinet.
6. Secure the trim ring to the cabinet using the self-tapping sheet metal screws from the inside of the cabinet into the trim ring.
7. Re-attach the cabinet door assembly.

Cabinet Door and Dead Front Removal
When installing the cabinet, it may be necessary to remove the cabinet door and the dead front panel. This section provides instructions on
how to remove the door and the dead front panel.
1. Using a Phillips head screwdriver, remove the six screws that hold the dead front panel in place. See Figure 3.4.
sheetrock
mounting
studs
cabinet
mounting hole
sheetrock
trim ring
mounting hole
side view of cabinet
and trim ring
trim ring
cabinet
mounting
holes
trim ring
mounting
holes
1.5" to 1.75"
protrusion

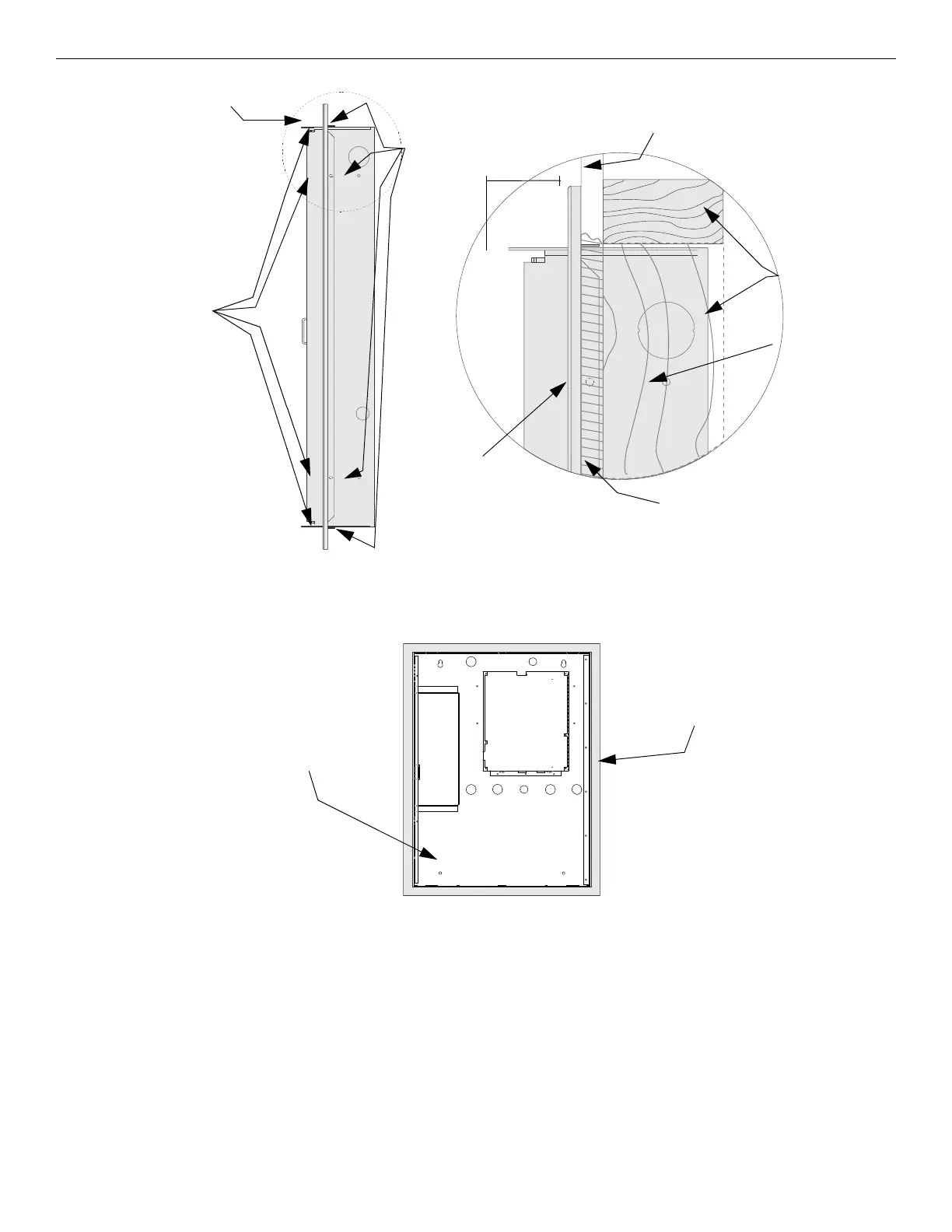

Figure 3.2 Detail of Flush Mounting with Trim Ring
Figure 3.3 Trim Ring Around Cabinet
cabinet
trim ring
