Emitter and Receiver Dimensions
Different protection heights are available in the FF-SB Series light curtain product line. Refer to figure 2-3
and the emitter and receiver heights table below.

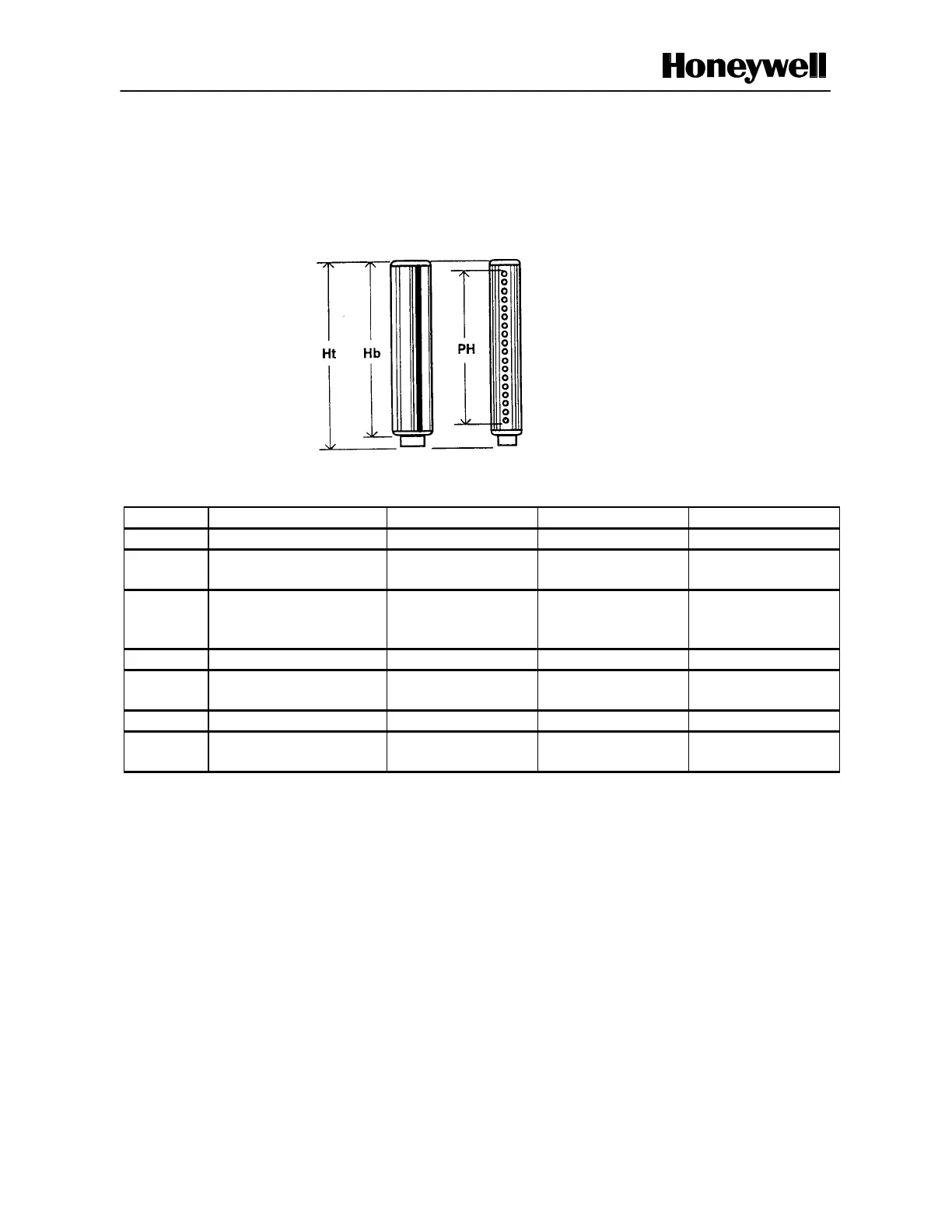

Figure 2-3 Emitter and Receiver Height Diagram
Emitter and Receiver Heights mm (in) - for reference only
Model Nominal Protected Height PH Hb Ht
FF-SB12 200 (7.87) 212,7 (8.4) 274,6 (10.8) 366,6 (14.4)
FF-SB12
FF-SB14 400 (15.75)
415,9 (16.4)
415,9 (16.4)
477,8 (18.8)
477,8 (18.8)
569,8 (22.4)
569,8 (22.4)
FF-SB12
FF-SB14
FF-SB15
600 (23.6)
619,1 (24.4)
619,1 (24.4)
619 (24.4)
681 (26.8)
681 (26.8)
689 (27.1)
773 (30.4)
773 (30.4)
769 (30.3)
FF-SB14 800 (31.5) 822,3 (32.4) 884,2 (34.8) 976,2 (38.4)
FF-SB14
FF-SB15 1000 (39.37)
1025,5 (40.4)
1025 (40.4)
1087,4 (42.8)
1089 (42.9)
1179,4 (46.4)
1169 (46.0)
FF-SB14 1200 (47.24) 1228,7 (48.4) 1291 (50.8) 1382,6 (54.4)
FF-SB14
FF-SB15 1400 (55.12)
1431,9 (56.4)
1432 (56.4)
1493,8 (58.8)
1489 (58.6)
1585,8 (62.4)
1569 (61.8)
PH = Protection Height; Hb = Unit Height; Ht = Unit Height with Female Plug Connector
