Mounting Brackets
Three types of mounting brackets are available:
• Omega bracket (see figure 2-16)
• "L" bracket (see figure 2-17)
• Rotatable bracket (see figure 2-18)
Each mounting accessories set includes two brackets and mounting hardware. Two sets are required for one
light curtain system (one for the emitter and one for the receiver). See figure 2-15 for assembly.

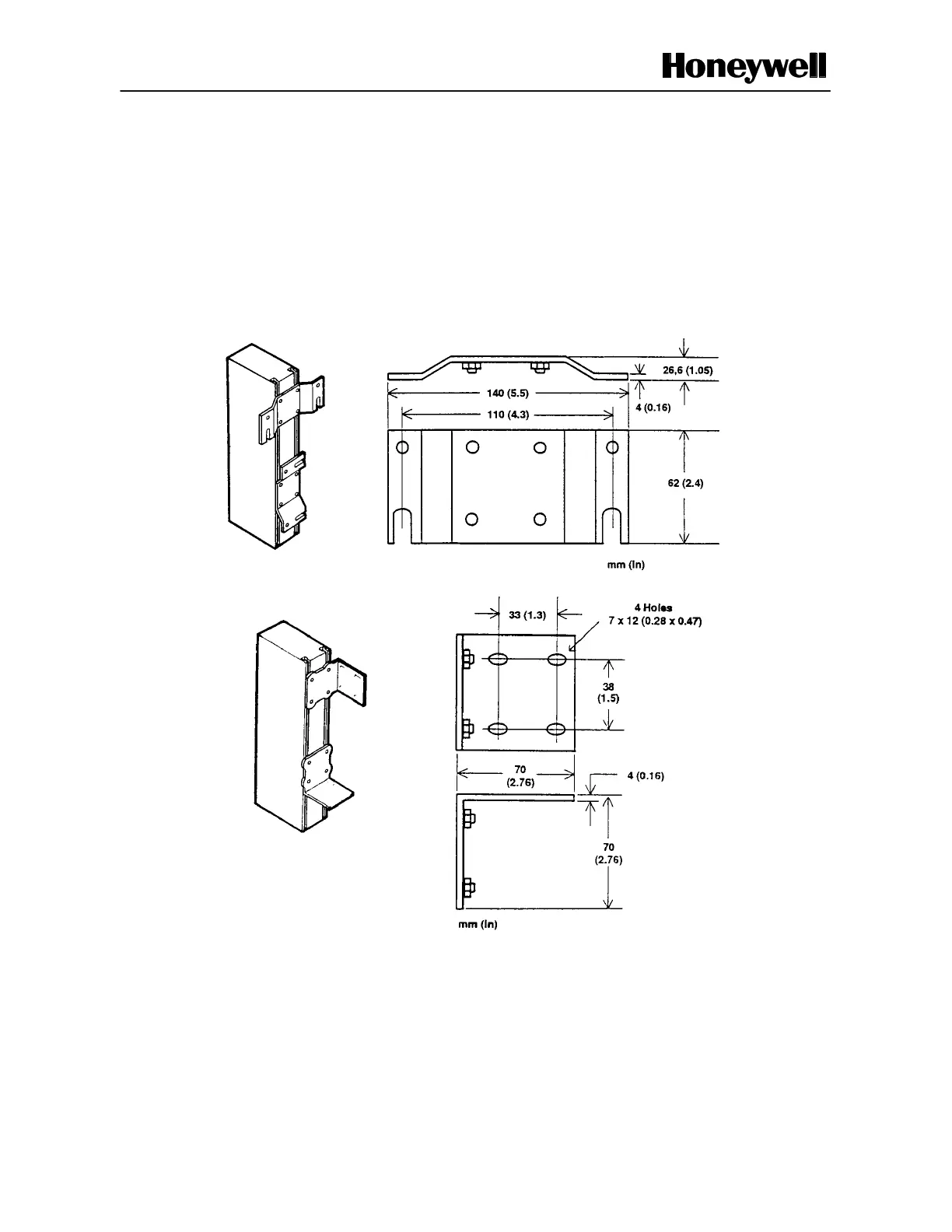

Figure 2-16 Omega Bracket Dimensions
Figure 2-17 "L" Bracket Dimensions
