FMST-FXV(E) Installation Manual
- 4 -
(A) (B)
Fig.7

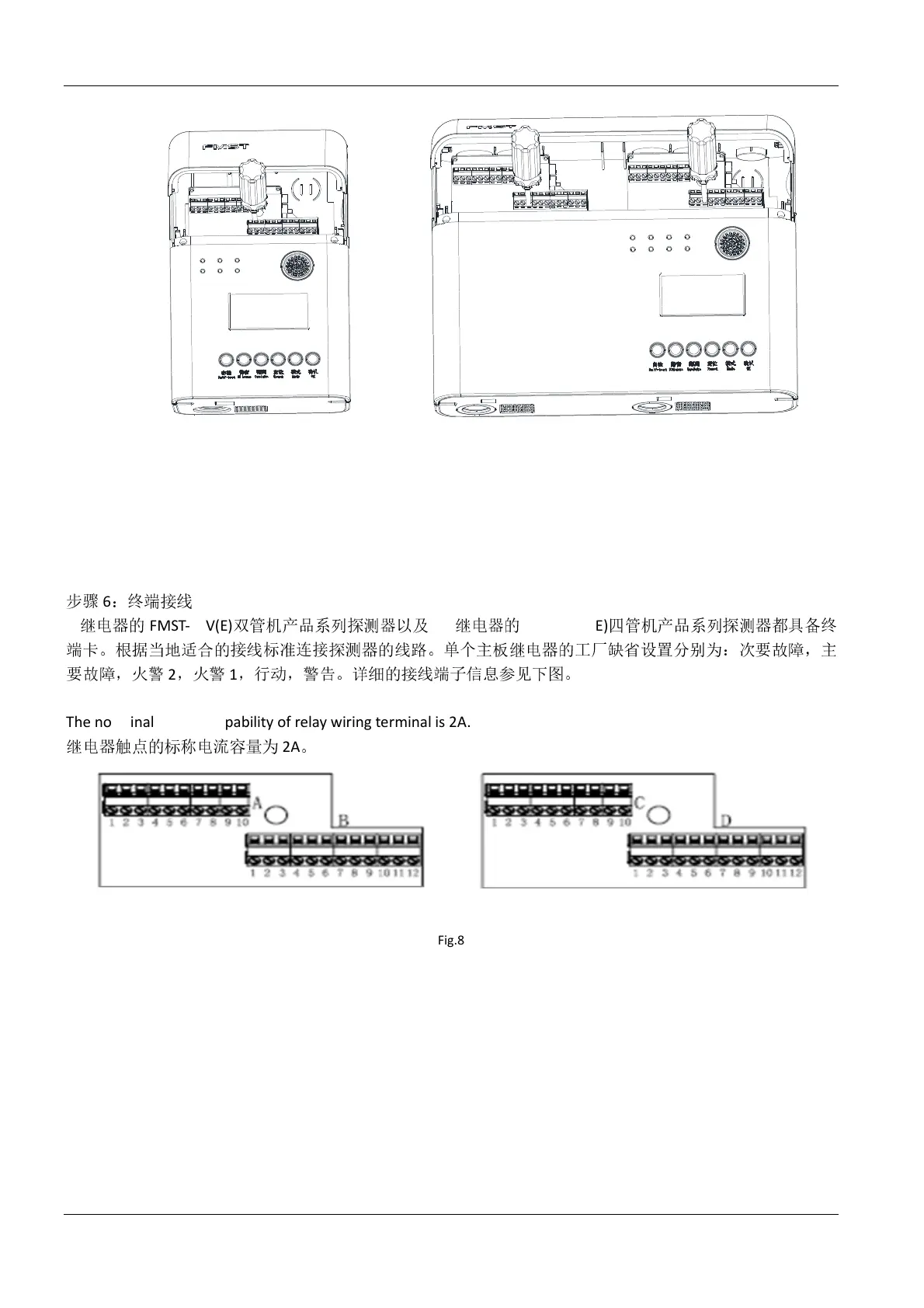

Step6:Terminal Wiring
The Termination Card is available with 6 relays for the FMST-FXV(E) dual pipe product series, and 12 relays for FMST-
FXV(E) four pipe product series. Use the appropriate local wiring standards to connect the detector wiring. Factory
default relays setting for single terminal board is configured as Minor fault,Major fault,Fire2, Fire1, Action, Alert. Refer
to the block diagram below for detailed information of all wiring terminals.
步骤
6
：终端接线
6
继电器的
FMST-FXV(E)
双管机产品系列探测器以及
12
继电器的
FMST-FXV(E)
四管机产品系列探测器都具备终
端卡。根据当地适合的接线标准连接探测器的线路。单个主板继电器的工厂缺省设置分别为：次要故障，主
要故障，火警
2
，火警
1
，行动，警告。详细的接线端子信息参见下图。
The norminal current capability of relay wiring terminal is 2A.
继电器触点的标称电流容量为
2A
。
